RCL-75 Searchlight

THE RCL-75 Has Been Discontinued.  Warranty Support is still accessible.

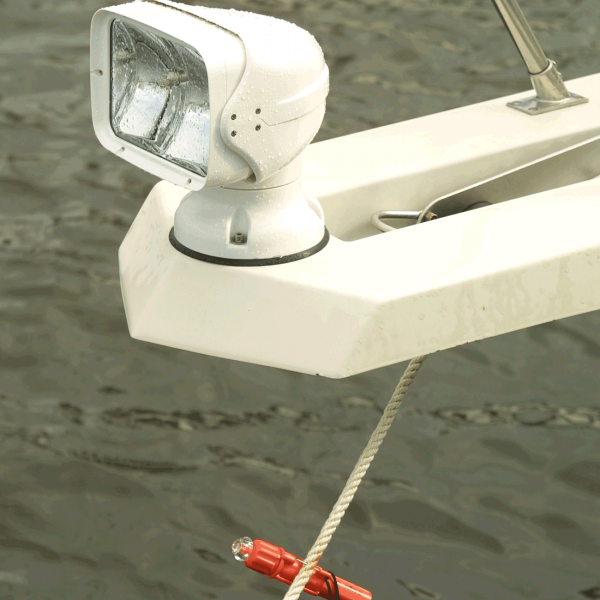

The RCL-75 Searchlight is made especially for pleasure boats, sport yachts, sport fishers, and commercial vessels. The dual-lamp design of this searchlight provides redundancy and reliability, so you can trust that it’ll work when you need it the most. Plus, the innovative direct drive system eliminates uncontrolled light movement in choppy conditions, so if you should run into unexpected weather, you can be sure that your light will still shine as needed.



WARNING: PROP 65

Out of stock

PRODUCT DESCRIPTION

THE RCL-75 Has Been Discontinued.  Warranty Support is still accessible.

Electronics are located in the water-resistant light head instead of the base for increased protection. The innovative “direct drive” system eliminates uncontrolled light movement in choppy conditions.

Application: Pleasure boats, sport yachts, sport fish and commercial vessels.

  • Dual lamp design provides redundancy, reliability – works when you need it
  • Bright, powerful 55-watt halogen bulbs with 3° h x 5° w beam spread
  • Easy-to-install Point Pad™-style joystick control
  • Robust, function-and feature-rich searchlight is easy to install
  • 7-wire wiring harness, 17-foot length
  • Electronics located in the water-resistant light head, instead of traditional light base location, for protection from water accumulation
  • 45° down pitch ocular design provides enhanced visibility when docking
  • 18° up pitch to illuminate draw bridge towers, etc.
  • Lamps easily replaced by removing top cap to access rear light assembly
  • Desiccated filter dries air; protects reflector and light assembly
  • Innovative “direct drive” system eliminates uncontrolled light movement in choppy conditions
  • Heavy-duty gear teeth and electric motors
  • Add an adapter and another Point Pad™ for remote, second station operation

Tags: searchlights, searchlight, RCL Searchlight, RCL 75, boat searchlight, marine searchlight, marine searchlights, ACR searchlight, 1946, P/N 1946

Additional information

Weight 7.00 lbs
Dimensions 900.00 × 1000.00 in
Product

Product Number THE RCL-75 Has Been Discontinued.  Warranty Support is still accessible)
Size 7.5 x 8.75 x 7.5”(19.1 x 22.2 x 19.1 cm)
Weight 4.2 lbs (1.9 kg)
Material UV ASA
Color White
Operation Remote-controlled Point Pad™
Beam Angle 3° vertical, 7° horizontal
Elevation Angle 18° up, 45° down
Rotation 361°
Rotation Speed 6-7° per second
Elevation Speed 6-7° per second (12 VDC)
Lamp Two high-intensity 55W Halogen
Accessories Secondary Point Pad™ (P/N 9428)Stackable 1” riser (P/N 9427)2nd station cable harness (P/N 9426)Second station harness adapter(P/N 9442)
Footprint Diameter 5.4” (138.1 mm)
Carton Dimensions 10 x 9 x 9” (25.4 x 22.9 x 22.9 cm)
Carton Weight 7 lbs (3.2 kg)
Limited Warranty 1 Year
Replacement Lamp 55W/12V Lamp, Halogen, 200-hr operating life (P/N 9403)
Risers 1\\\” Riser, can be stacked to raise light (P/N 9427)
Secondary Station Point Pad Flush or Surface Mount (P/N 9428)
Secondary Station Cable Harness 17\\\” (5.2m) length, waterproof connectors (P/N 9426)
Secondary Station Harness Adapter Splitter, waterproof connector (P/N 9442)
Secondary Station Cable Harness 17\\\’ (5.2m) length, flat connectors (P/N 9469)
Other Parts for Installation Base gasket (P/N 9425), U-clamps Flush Mount Point Pad Option 2-pack (P/N 9444)

WARRANTY LENGTH: 1 YEAR

This product is warranted against factory defect in material and workmanship for a period of 1 (one)* year from date of purchase or receipt as a gift. During the warranty period ACR Electronics, Inc. will repair or at its option, replace at no cost to you for labor, materials or return transportation.

For further assistance, please contact our Technical Service Department at :

ACR Electronics, Inc.
5757 Ravenswood Road
Fort Lauderdale, FL 33312-6645.

Email: service@acrelectronics.com, Fax: +1 (954) 983-5087, Telephone: +1 (954) 981- 3333.

This warranty does not apply if the product has been damaged by accident or misuse or as a result of service or modification by other than the manufacturer.  The COMPANY MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY OTHER MATTER concerning THIS PRODUCT, except as otherwise expressly stated in the previous paragraph. The Company shall not be liable for consequential or special damages. To place the warranty in effect, choose a form above and complete it entirely. Or you may fill out the registration card accompanying your product (if applicable) which must be returned to ACR Electronics, Inc. within ten days of purchase.

*Five Years for the following products:  EPIRB and PLB.

How can I obtain a replacement bulb for my ACR searchlight?

Usually, you can purchase the bulb from your local ACR dealer. If your dealer is not able to supply the bulb, you can always obtain it from ACR by emailing service@acrelectronics.com or using our Contact Us Form.
