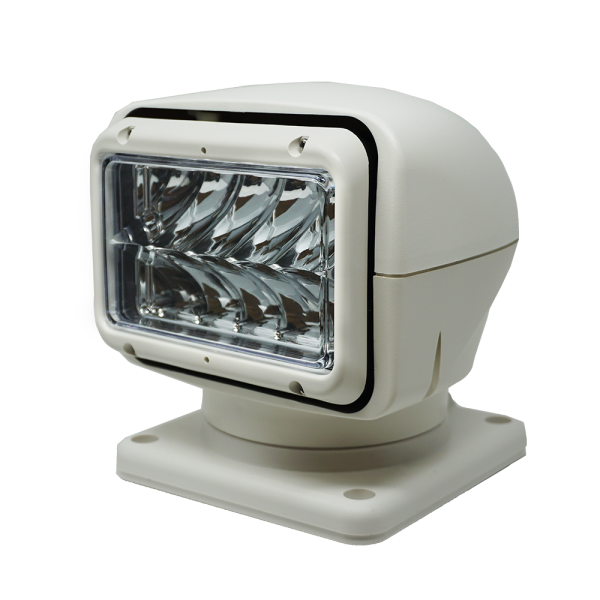

RCL-95 LED Searchlight





RCL-95 LED Searchlight

RCL-95 LED Searchlight


The all-new RCL-95 LED searchlight was designed for performance and simplicity and to be one of the brightest led boat searchlights.  With an industry-best 460,000 candelas using 10 High Flux (50W) LEDs, you have visibility over ¾ of a nautical mile to light the way to your destination. The RCL-95 LED’s sleek design makes it an attractive and cost-effective choice for small to medium-sized recreational powerboats as well as light commercial vessels.



Find a dealer


Use the RCL-95 LED searchlight with either the wired dash mount joystick control or the wireless handheld remote to rotate the light 360 degrees continuously at either a fast or slow speed without the hassle of a hard stop.  With an 8-degree beam angle, the light can tilt an impressive 135 degrees to make lighting draw bridges, buoys, and docks a breeze.  The auto-home feature will conveniently park the searchlight back at the desired starting location each time you turn the searchlight off.  The RCL-95 is the brightest led boat searchlight that is weather resistant with the electronics located in the IP68 water-resistant light head instead of the base for increased protection. The ASA housing and lens are sealed against the elements for years of trouble-free operation.

Key Features:

  • 10 High Flux LEDs (OSRAM)
  • 460,000 Candela, Max Beam Distance 4,501 Feet (1,372 m) one of the brightest led boat searchlight

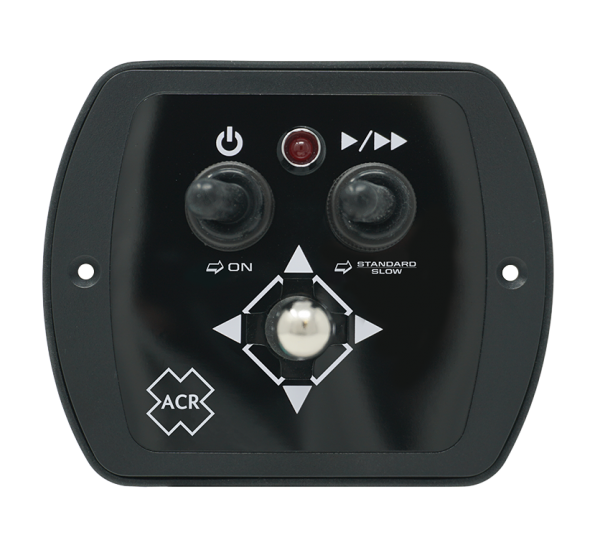

  • Wireless Handheld Remote and Wired Dash Mount Joystick (Both Included)
  • 360o Continuous Rotation and 135o Tilt
  • Auto-home return when off
  • 4 Amps (12V) to 2 Amps (24V)
  • Efficient, long-life LED’s – 50,000 operating hours
  • UV & Weather Resistant
  • Simple Installation (12-24V Power Connection and 5M Wired Joystick Control Cable)
  • Perfect for work trucks, vans, boats, and workboats

Optional Accessories:

  • Wireless Dash Mount Remote (p/n 9635)
  • RCL-95 Replacement Mounting Plate for GOLIGHT® (p/n 9639)*
  • RCL-95 16.4′ (5m) Extension Cable (p/n 9638)
  • Cable Harness for RCL-95 joystick (p/n 9640)

*This retrofit kit can be used when replacing GOLIGHT® Stryker or RadioRay searchlights with the RCL-95 searchlight. Note: This kit will not work for the RadioRay Portable version (GOLIGHT is a registered trademark of GOLIGHT Inc.)

Additional information

Weight 8 lbs
Dimensions 9.25 × 9 × 10.25 in
Colors and Accessories

White (1958), Black (1959), 16.4’ (5 m) Extension Cable for Wired Controller (9638)


ACR Product Number

PN 1958 (White) / PN 1959 (Black)


5.9 x 7.1 x 7.5\” (15 x 18 x 19 cm)


4.2 lbs (1.9 kg) (searchlight only)


Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance


White or Black


Wireless Handheld Remote (included) / 433.92 MHz and

Wired Dash Mount Joystick (included with 16.4’ (5m) cable)

Peak Beam Candle Power


Beam Maximum Distance

4,501 ft (1,372 meters)

Beam Pattern / Angle

Spot / 8o

Elevation Angle



360° Continuous

Rotation Speed

Fast 19° per second, slow 12° per second

Elevation Speed

11° per second


LED 50W (OSRAM x 10) / 50,000 hour life

IP Rating

IP 56 (Housing) / IP 68 (LED Module)

Accessories (PN 9636 is included with the searchlight – all other accessories are sold separately)

Wireless Dash Mount Remote (PN 9635)

16.4’ (5 m) Extension Cable for Wired Controller (PN 9638)

Replacement GOLIGHT® Mounting Plate (PN 9639) – Used when replacing GOLIGHT® Stryker or RadioRay Searchlights (will not work for RadioRay portable model)*

Standard Remote Control (PN 9636)

Footprint Diameter (distance between mounting holes)

4.92” x 4.92” (12.5 x 12.5 cm)

Total Footprint (dimensions of searchlight base)

6.06” x 6.06” (15.4 x 15.4 cm)

Power Requirements

12 or 24 V DC


2 Years


D752,267 / 9,249,960 / 9,890,923 / 10,012,369


FCC / CE / R10


This product is warranted against factory defect in material and workmanship for a period of 2 (two)* years from the date of purchase or receipt as a gift. During the warranty period ACR Electronics, Inc. will repair or at its option, replace at no cost to you for labor, materials or return transportation.

For further assistance, please contact our Technical Service Department at :

ACR Electronics, Inc.
5757 Ravenswood Road
Fort Lauderdale, FL 33312-6645.

Email: service@acrelectronics.com

Telephone: +1 (954) 981- 3333

Fax: +1 (954) 983-5087

This warranty does not apply if the product has been damaged by accident or misuse or as a result of service or modification by other than the manufacturer.  The COMPANY MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY OTHER MATTER concerning THIS PRODUCT, except as otherwise expressly stated in the previous paragraph. The Company shall not be liable for consequential or special damages. To place the warranty in effect, choose a form above and complete it entirely. Or you may fill out the registration card accompanying your product (if applicable) which must be returned to ACR Electronics, Inc. within ten days of purchase.

*Five Years for the following products:  EPIRB and PLB.

Q: How do I disable the auto home feature

A: After pressing the on/off button to turn off the light, quickly press the on/off button again. The second press of the on/off button will stop the light from going to the home position. The next time the light is turned on it will remain in the same position. Note: This is not a permanent solution as the next time the light is turned off the auto home feature will be active again unless the on/off button is pressed twice in quick succession to turn the light off.
