RCL-100 LED Searchlight

$1,754.95$2,059.95

The LED version of our most popular RCL-100D searchlight provides high intensity LED performance that pierces through nights and low lighting conditions with a blazing 220,000 candela. The RCL-100 LED’s traditionally sleek design makes it an attractive and cost-effective choice for sport yachts, mega-yachts, sport fishers, and light commercial vessels. With more efficient LEDs, the RCL-100 LED has reduced power consumption demand by up to 50% on 12V vessels.

Owners of the RCL-100 LED searchlight and the older halogen RCL-100D searchlight have the option to purchase the Wifi Remote Control Module which provides the flexibility of controlling your RCL-100 LED and RCL-100D using the free ACR Searchlight App. The Privacy Policy for the ACR Searchlight App can be accessed via this link.

Note: The ACR Searchlight app is available for iOS and Android. See “Description” tab below for instructions on installing the app on your mobile device.

WARNING: PROP 65

Clear
Find a dealer

PRODUCT DESCRIPTION

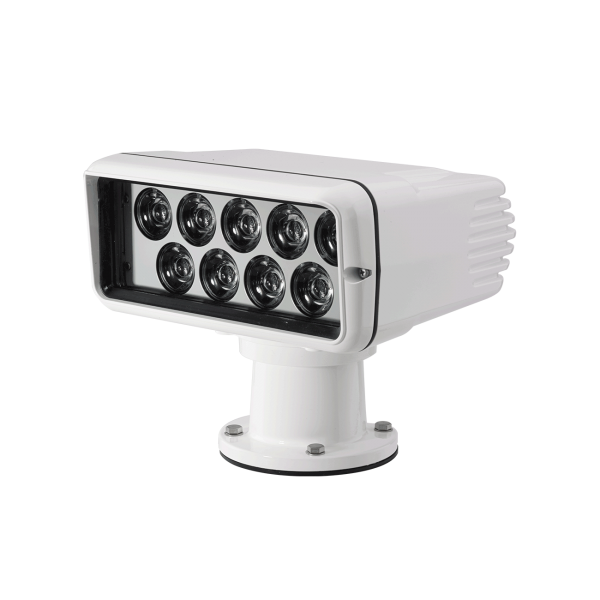

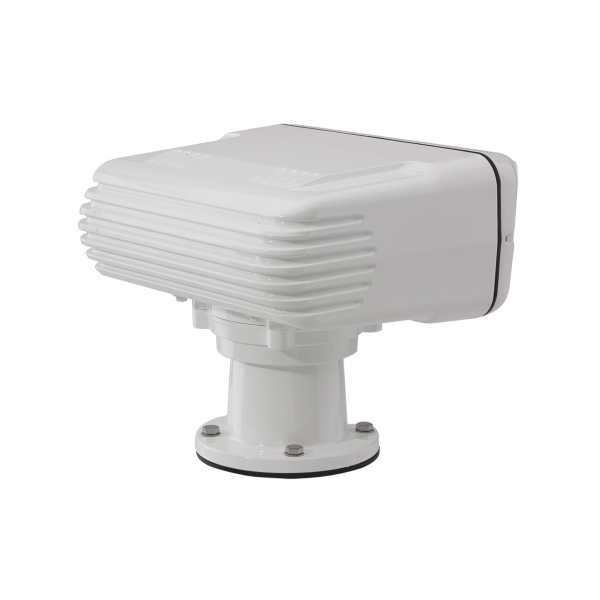

The RCL-100 LED searchlight continues to utilize the same rugged design as the original RCL-100D, but incorporates a new efficient 9 LED array that produces over 220,000 candelas of light. The strong and light aluminum housing along with glass lens are weather-sealed for years of trouble-free operation.  Other features include a wired remote that allows continuous 360 degrees of rotation at fast or slow speed without the hassle of a hard stop.  With a 7-degree beam angle, the light also provides elevation angles at 9 degrees up and 17 degrees down to make lighting draw bridges, buoys, and docks a breeze.

Not all searchlights are created equal and the body is triple-primed and painted with UV stabilizer to survive years in the harsh marine environment.  The RCL-100 LED searchlight internals a fully enclosed and provide precise pitch control of the beam while staying protected. The efficiently designed LED array provide over 40,000 hours.  The light also includes our Exclusive XRCiZ™ feature, independently rotating every 30 days from activation to ensure all bearing surfaces are free of corrosion and all electrical contacts functional.  The RCL-100 LED is weather-resistant and operates with 12 or 24 DC power.

The new ACR RCL-100 LED light is sold in a convenient kit configured as follows.

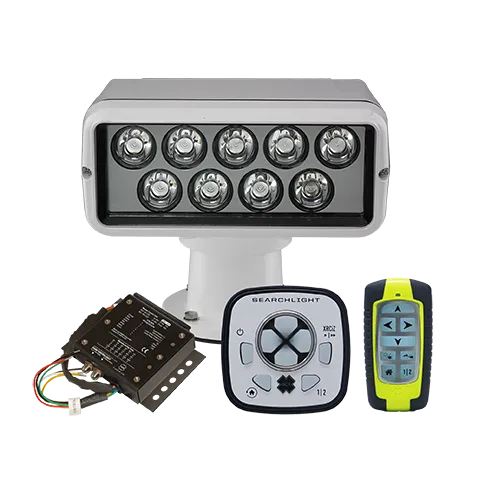

  • Wired Kit:  RCL-100 LED Searchlight with Master Controller and Wired Point Pad Controller (P/N 1951 or 1951.B)



Main Features of the New RCL-100 LED:

  • Ultra-bright, 9 LED array generates over 220,000 peak candela
  • Efficient, long-life LED’s – 40,000 operating hours
  • Reduced power consumption demand by up to 50% on 12V vessels
  • The controller has state-of-the-art electronics to protect the light from most power surges
  • Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather
  • Rugged triple-primed and sealed, marine-grade aluminum housing
  • Includes fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options included
  • Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
  • The wiring harness of 15 feet (4.57 m)
  • Two-speed motor



Mobile App Installation Instructions:

iOS – Visit the Apple App Store, search for “ACR Searchlight”, and download the free app

Android – As shown in the screenshot below, go to the “Lock Screen and Security” settings screen on your mobile device which you wish to use to control your searchlight, select the option to allow the installation of apps from “Unknown Sources” and click “OK”. After completing these steps, click here to install the ACR Searchlight mobile app on your device.

Additional information

Weight 13.00 lbs
Dimensions 13 × 12 × 15.00 in
RCL-100 LED Searchlight

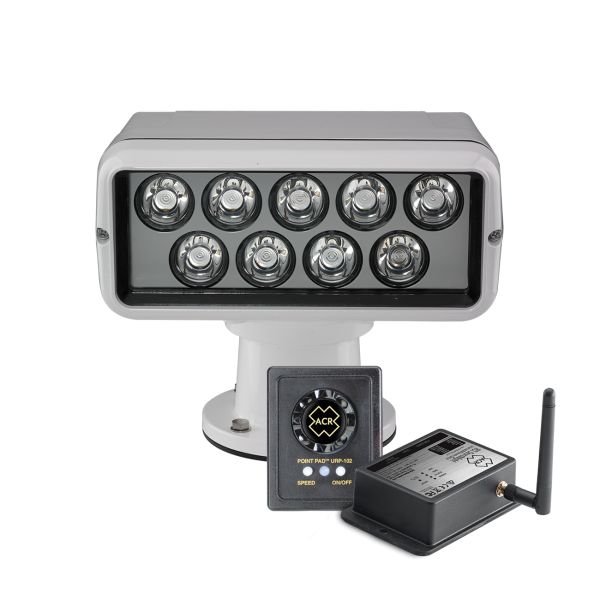

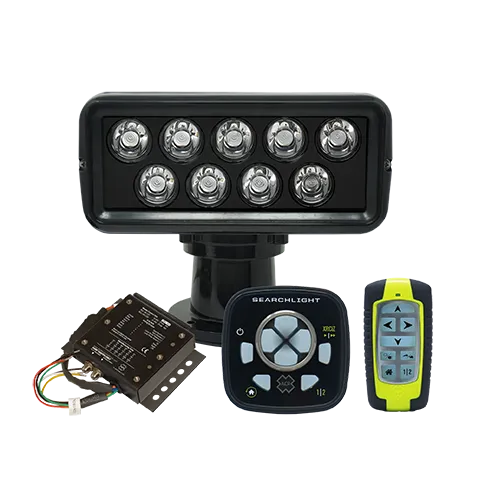

RCL-100LED Searchlight (White – 1951), RCL-100LED Searchlight (Black – 1951.B), RCL-100LED (White – 1953) Searchlight System with Wi-Fi Remote, RCL-100LED (Black 1953.B) Searchlight System with Wi-Fi Remote, URC-102 Master Controller Only (Searchlight Not Included)

Product

ACR Product Number 1951 (White) / 1951.B (Black)
Size 8 x 9 x 8” (20.3 x 22.9 x 20.3 cm)
Weight 7.2 lbs (3.2 kg)
Material 518 Die-cast aluminum
Color White or Black
Operation Remote-controlled wired Point Pad
Beam Angle 7° vertical, 7° horizontal
Elevation Angle 9° up, 17° down
Rotation 360° continuous
Rotation Speed Fast 31° per second, slow 20° per second
Elevation Speed 2.8° per second
Lamp 9 LED Array (220,000 cd)
Accessories Master Controller (URC-103) and Point Pad Installation Kit (9283.4), Master Controller Kit (1949)
Footprint Diameter (without pedestal) 4.75” (120.7 mm)

WARRANTY LENGTH: 1 YEAR

This product is warranted against factory defect in material and workmanship for a period of 1 (one)* year from date of purchase or receipt as a gift. During the warranty period ACR Electronics, Inc. will repair or at its option, replace at no cost to you for labor, materials or return transportation.

For further assistance, please contact our Technical Service Department at :

ACR Electronics, Inc.
5757 Ravenswood Road
Fort Lauderdale, FL 33312-6645.

Email: service@acrelectronics.com, Fax: +1 (954) 983-5087, Telephone: +1 (954) 981- 3333.

This warranty does not apply if the product has been damaged by accident or misuse or as a result of service or modification by other than the manufacturer.  The COMPANY MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY OTHER MATTER concerning THIS PRODUCT, except as otherwise expressly stated in the previous paragraph. The Company shall not be liable for consequential or special damages. To place the warranty in effect, choose a form above and complete it entirely. Or you may fill out the registration card accompanying your product (if applicable) which must be returned to ACR Electronics, Inc. within ten days of purchase.

*Five Years for the following products:  EPIRB and PLB.

How can I obtain a replacement bulb for my ACR searchlight?

Usually, you can purchase the bulb from your local ACR dealer. If your dealer is not able to supply the bulb, you can always obtain it from ACR by emailing service@acrelectronics.com or using our Contact Us Form.



Can I switch my RCL-100D light unit with the new LED Version?

Yes, but you will also need to replace your existing master controller with a new URC-103, which is included in P/N 1951.



Why do I need a new Master Controller if I am just switching to the LED version of the RCL-100?

The URC-102 Master Controller (RCL-100D) has a slow turn-on voltage for the halogen bulbs which the LEDs do not need. The voltage for the halogen bulbs, after switch on, is continuously regulated, which induces noise in the LED powerhead.



Is there any wiring difference between the ‘old’ and new RCL 100/LED?

The same coax cable, point pad and wire harness colors are used.



Is the RCL-100 LED light compatible with 12V or 24V systems?

It is compatible with both 12 and 24 V.



How long will the LED lights last on the RCL-100 LED?

The LED’s are rated to last over 40,000 hours each.



If one LED bulb fails, can it be repaired?

The complete LED Power Head Assembly must be replaced.



Can the URC 103 controller for the LED version be used on the RCL 100D halogen unit?

This controller will blow the halogen bulbs at switch on.



Can I find a troubleshooting guide for the RCL-100 LED?

Yes, please review the manual. (In the Downloads Section below)



What is the maximum current (Amp) that the light needs to be supplied with?

The light uses a maximum of 3.5 Amp and has a 5 amp fuse installed.



Is there a 3D rendition of the light available for planning purposes?

Yes, there is a 3D SolidWorks package available. Contact service@acrartex.com
