Wi-Fi Remote Control Module





Wi-Fi Remote Control Module

Wi-Fi Remote Control Module

This Wifi Remote Control Module will give you the flexibility of controlling your RCL-100LED and RCL-100D straight from your mobile phone.

Note: The ACR Searchlight app is available for iOS and Android. See “Description” tab below for instructions on installing the app on your mobile device.




CODE: SHIPFREE20 Free Ground Shipping on orders above U$30. Excludes HI and AK


Find a dealer


To control and operate the Wi-Fi Module you will need:

  • Suitable iOS or Android smart phone or tablet
  • External GPS if you wish to display Position data on a Wi-Fi only iPad or other mobile device with no internal GPS

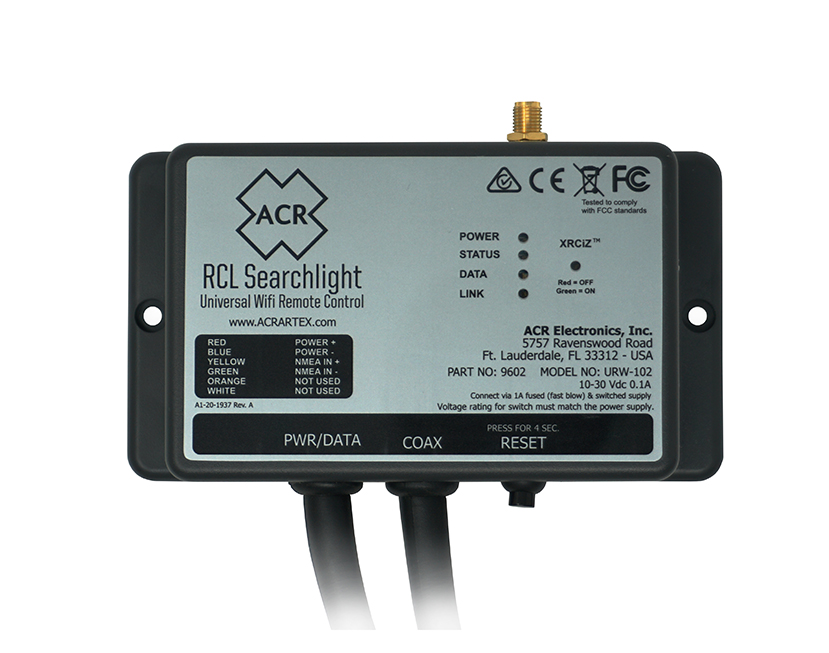

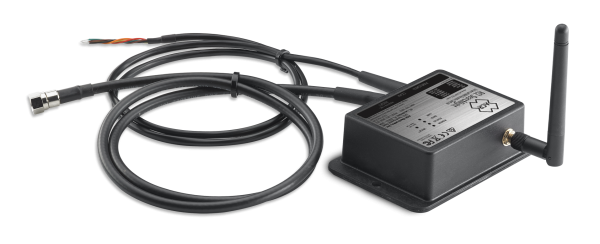

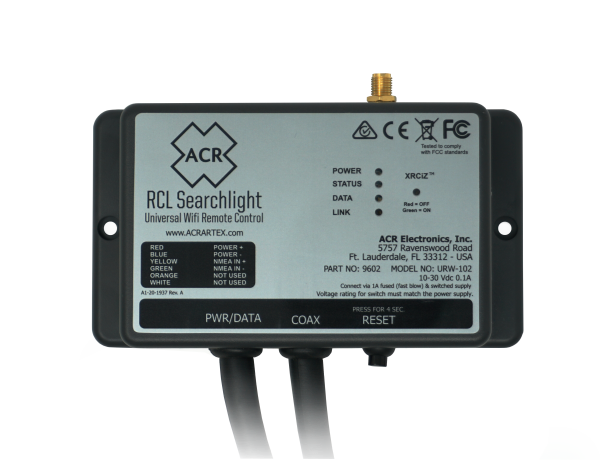

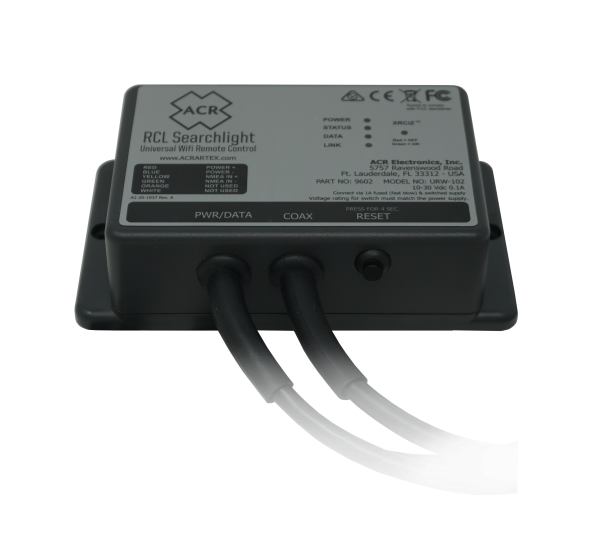

The Wi-Fi module has an integral Power/Data cable with four wires. The function of each wire is shown on the product label. The Wi-Fi Module has an NMEA0183 input that allows an external GPS to provide position information for display in the ACR Searchlight App. This is particularly useful if the mobile device does not have an internal GPS, such as a Wi-Fi only iPad. If no external GPS is connected, the App will automatically use the mobile device’s internal GPS and if this is not available, no position will be displayed in the ACR Searchlight App.


Mobile App Installation Instructions:

iOS – Visit the Apple App Store, search for “ACR Searchlight”, and download the free app

Android – As shown in the screenshot below, go to the “Lock Screen and Security” settings screen on your mobile device which you wish to use to control your searchlight, select the option to allow the installation of apps from “Unknown Sources” and click “OK”. After completing these steps, click here to install the ACR Searchlight mobile app on your device.



Additional information

Weight 1.00 lbs
Dimensions 6.00 × 5.00 in
Boat Size




This product is warranted against factory defect in material and workmanship for a period of 1 (one) year from date of purchase or receipt as a gift. During the warranty period ACR Electronics, Inc. will repair or at its option, replace at no cost to you for labor, materials or return transportation.
For further assistance, please contact our Technical Service Department at :


ACR Electronics, Inc.

5757 Ravenswood Road, Fort Lauderdale, FL 33312-6645

Email: service@acrelectronics.com

Telephone: +1 (954) 981-3333

Fax: +1 (954) 983-5087

This warranty does not apply if the product has been damaged by accident or misuse, or as a result of service or modification by other than the manufacturer.  The COMPANY MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY OTHER MATTER WITH RESPECT TO THIS PRODUCT, except as otherwise expressly stated in the previous paragraph. The Company shall not be liable for consequential or special damages. In order to place the warranty in effect, choose a form above and complete it entirely. Or you may fill out the registration card accompanying your product (if applicable) which must be returned to ACR Electronics, Inc. within ten days of purchase.
