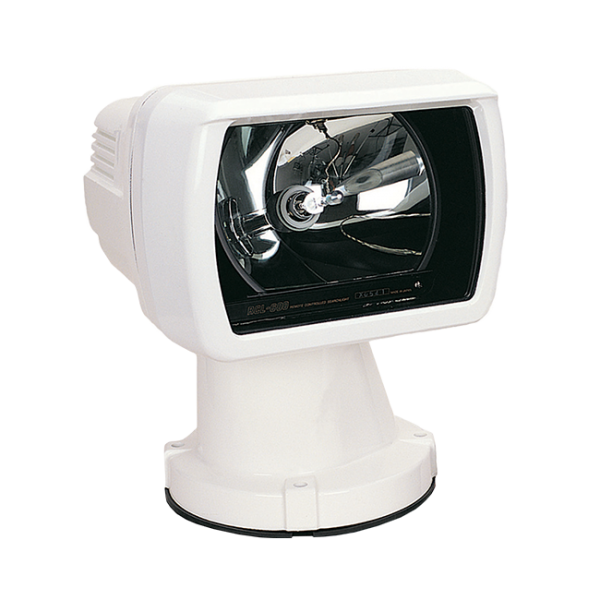

RCL-600A Searchlight





RCL-600A Searchlight

RCL-600A Searchlight


At 6 million candelas, this top-of-the-line searchlight pierces even the darkest night. Its high-intensity 150-watt Xenon bulb and parabolic reflector provide tough power for commercial vessels, while its aesthetic design meets all the needs of large pleasure yachts. Switch easily from floodlight to spotlight, and aim precisely with the self-contained remote joystick.

Available on backorder

Find a dealer


The rugged powder-coated aluminum searchlight with all internal/protected motors and elevation mechanisms will stand up to the tough marine environment for years of useful service

  • Auto return brings light back to a pre-set position
  • Xenon lamp and parabolic reflector provide hyper-intense 6,000,000 candela spotlight beam
  • Housing rotates a full 360° allowing all-around illumination capability
  • Nylon shoulder washers at base eliminate the galvanic reaction
  • Marine-grade aluminum enclosure for years of reliable, weatherproof service
  • Aesthetically designed to meet performance requirements of large pleasure yachts
  • Internal elevation mechanism provides pitch control of spotlight while protecting elevation mechanism from weather

Tags: searchlights, searchlight, RCL Searchlight, RCL 600, boat searchlight, marine searchlight, marine searchlights, ACR searchlight, 1941, P/N 1941

Additional information

Weight 65.0 lbs
Dimensions 18 × 18 × 24 in
Boat Type

, , ,


Product Number

17 x 14 x 15 in (43.2 x 35.6 x 38 cm)

62 lbs (28.1 kg)

Marine-grade cast aluminum, tempered glass

Input Voltage


Remote-controlled joystick


Beam Spread
Variable; can be narrowed or broadened

Beam Angle
18° up, 30° down

360° continuous

Rotation Speed
Fast 30° per seconds
low 10° per second

Elevation Speed
Fast 27° per second, slow 11° per second

High-intensity 150W Xenon

Secondary remote joystick (P/N 1942)
12V or 24V Replacement bulb (P/N 6007)

Footprint Diameter
11.5” (292.1 mm)
Limited Warranty 1 Year

Carton Dimensions
26 x 21 x 19.5” (66 x 53 x 50 cm)

Carton Weight
65 lbs (29.5 kg)
