RCL-50 LED Searchlight





RCL-50 LED Searchlight

RCL-50 LED Searchlight

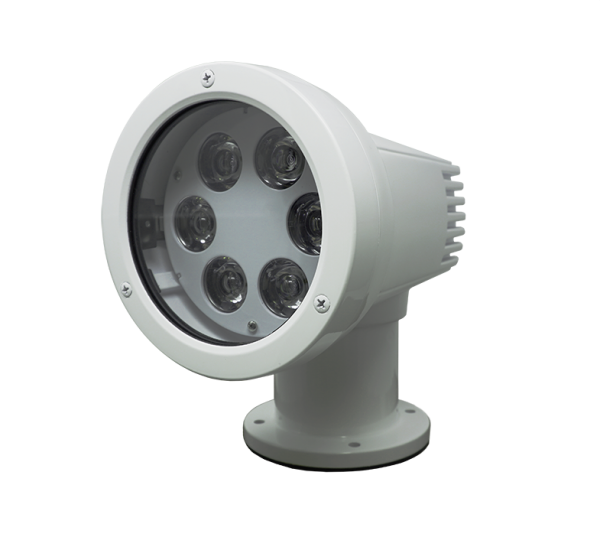

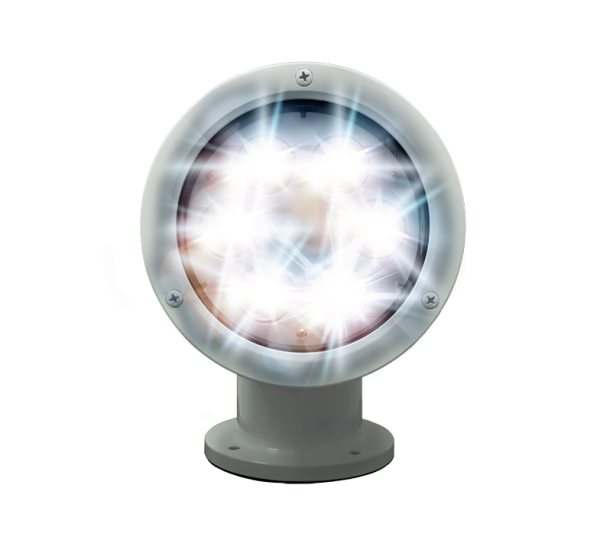

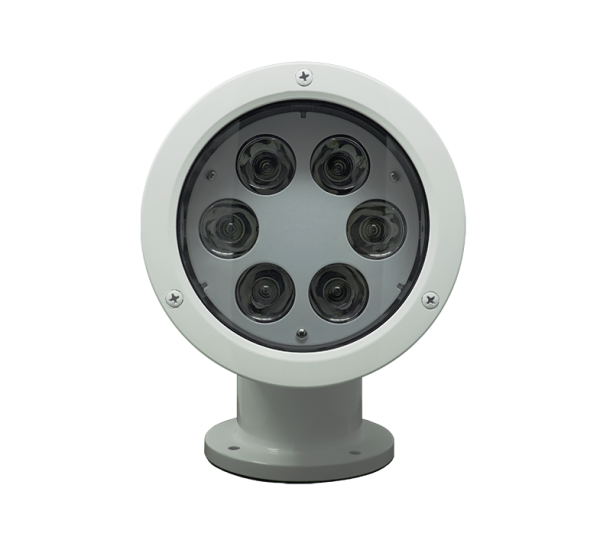

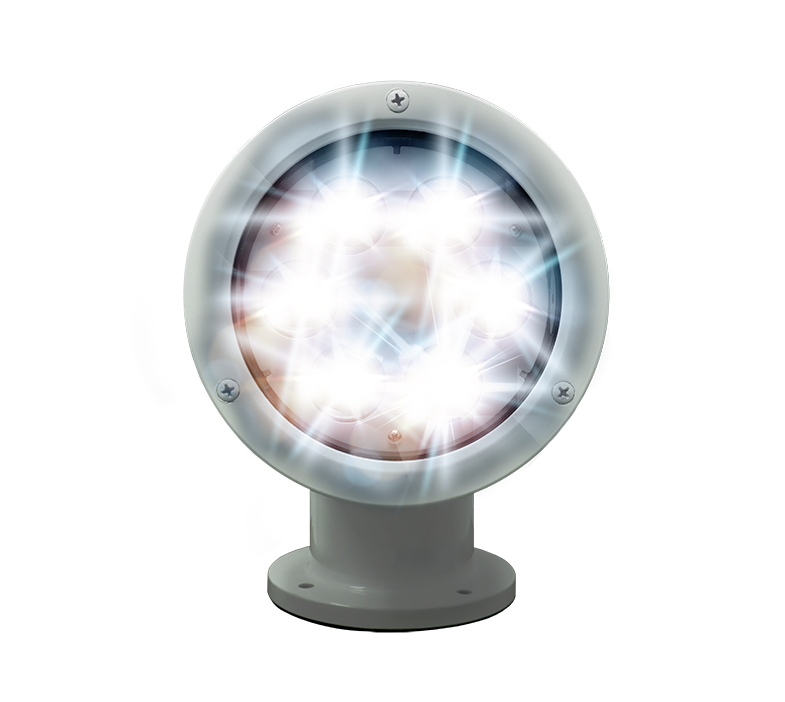

Designed for small-to-mid-size pleasure crafts and small commercial vessels, this rugged searchlight boasts a new 6 LED lamp with over 100,000-candela power.  Built for the rough and tough marine environment, the new RCL-50 utilizes the same proven die-cast aluminum housing with all new internal mechanical controls to power and rotate the ultra-bright LED lamp.

The RCL-50 LED’s traditionally sleek design makes it an attractive and cost-effective choice for sport yachts, yachts, sport fishers, workboats, and light commercial vessels. With more efficient LEDs, the RCL-50 LED has reduced power consumption demand by up to 50% on 12V vessels.






Find a dealer


The RCL-50 LED continues to utilize the same rugged design as the original RCL-50D and includes an efficient 6 LED array that produces over 100,000 candelas of light. Built for small to medium boats the aluminum housing and with sealed glass lens protecting for years of trouble-free operation.  Other features include a wired remote control that allows users 360 degrees of continuous rotations at fast or slow speeds without the hassle of a hard stop.  With a 10-degree beam angle, the light also provides elevation angles at 20 degrees up and down to making lighting draw bridges, buoys, and docks a breeze.

The aluminum case is coated with a UV stabilizer to survive years in the harsh marine environment.  The searchlight’s mechanisms are fully enclosed with protecting the precise beam pitch control and RCL-50 LED bulbs are designed to work over 40,000 operating hours.  Featuring Exclusive XRCiZ™, a pre-programmed system to independently rotate every 30 days from activation to protect from corrosion and all electrical contacts functional.  The RCL-50 LED is weather-resistant and operates with 12 or 24 DC power.


Main Features of the New RCL-50 LED:

  • Ultra-bright, 6 LED array generates over 100,000 peak candela
  • Efficient, long-life LED’s – 40,000 operating hours
  • Reduced power consumption demand by up to 50% on 12V vessels
  • The controller has state-of-the-art electronics to protect the light from most power surges
  • Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather

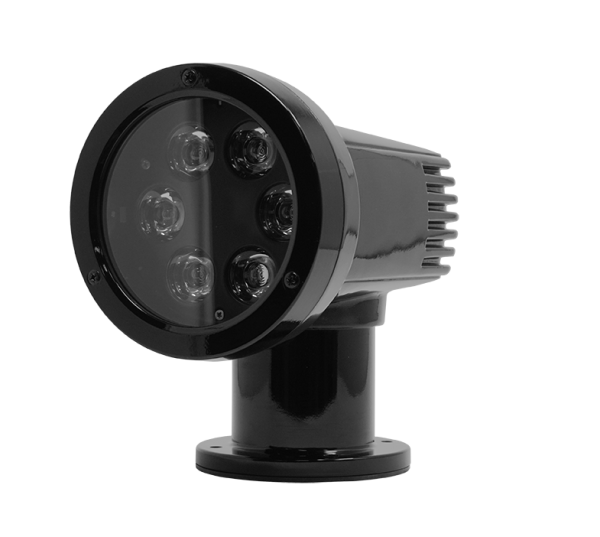

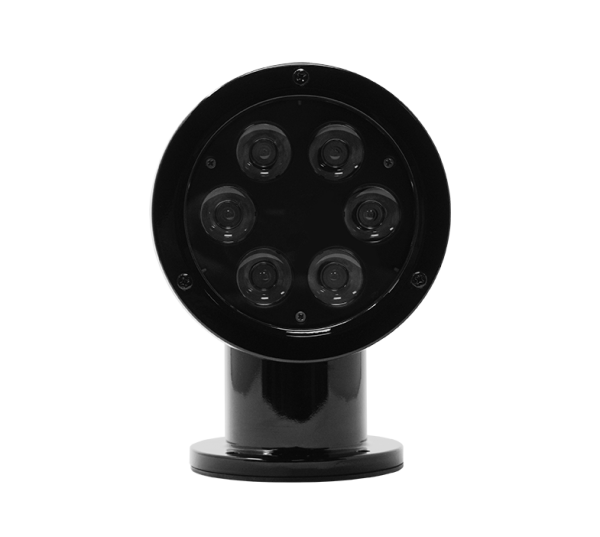

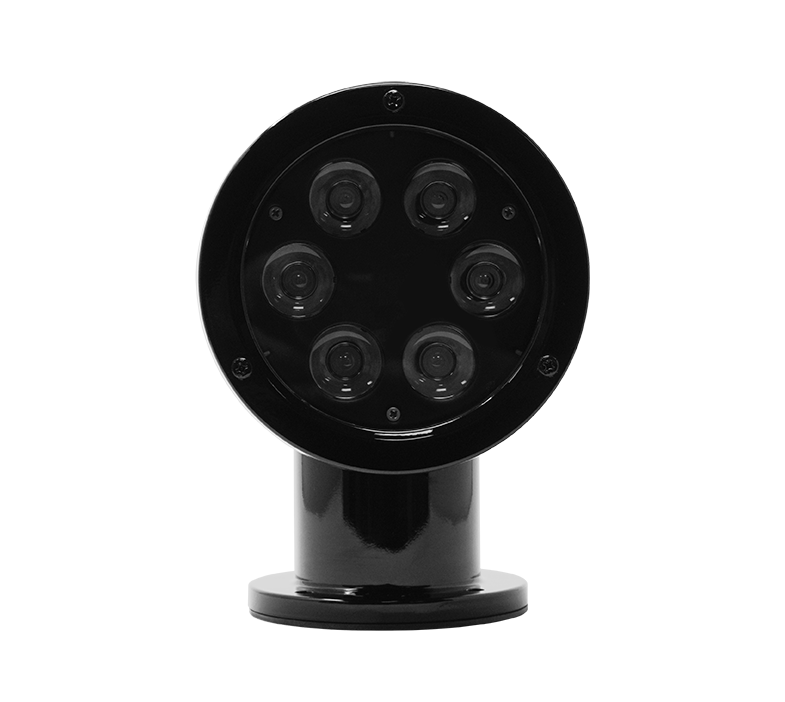

  • Rugged triple-primed and sealed, marine-grade aluminum housing (Available in White or Black)

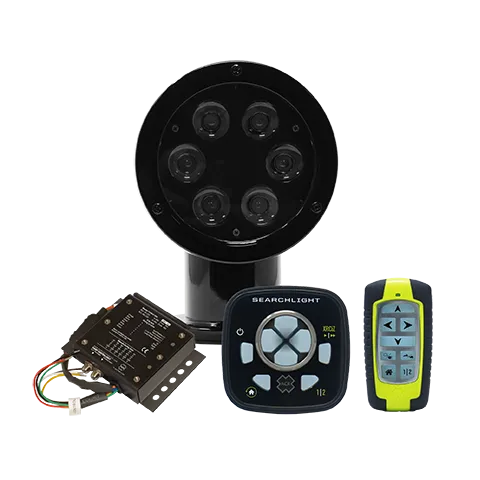

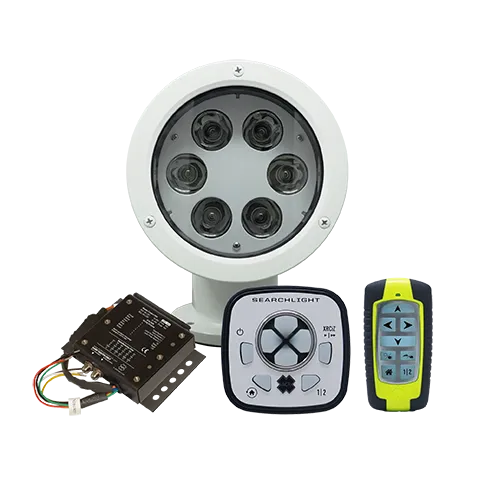

  • Includes fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options included
  • Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
  • Includes wiring harness of 15 feet (4.57 m)
  • Two-speed motor

Additional information

Weight 9.0 lbs
Dimensions 13.00 × 12.00 × 15.00 in

White (1960), Black (1961)


Product Number 1960 (White) or 1961 (Black)
Size 8.4 x 6 x 8”(21.3 x 15.2 x 20 cm)
Weight 7.72 lbs (3.5 kg)
Material Die-cast aluminum (518)
Color White or Black
Operation Remote-controlled Point Pad™
Beam Spread 10°
Elevation Angle 20° up, 20° down
Rotation 360° continuous
Rotation Speed 31° per second @ 12V
Elevation Speed 10° per second @ 12V
Lamp High-intensity LED lamp
Footprint Diameter 4.75” (120.7 mm)
Limited Warranty 1 Year
Carton Dimensions 12.5 x 8 x 11.5 (32 x 20 x 29 cm)
Carton Weight 10.32 lbs (4.68 kg)
Additional Point Pad Kit URP-102 Point Pad Kit for the secondary station, includes 2-way splitter, 4-ea F-connectors, 15\\\’ coaxial (P/N 9282.3)


This product is warranted against factory defect in material and workmanship for a period of 1 (one)* year from date of purchase or receipt as a gift. During the warranty period ACR Electronics, Inc. will repair or at its option, replace at no cost to you for labor, materials or return transportation.


For further assistance, please contact our Technical Service Department at:

ACR Electronics, Inc.

5757 Ravenswood Road, Fort Lauderdale, FL 33312-6645

Email: service@acrelectronics.com

Telephone: +1 (954) 981-3333

Fax: +1 (954) 983-5087

This warranty does not apply if the product has been damaged by an accident or misuse or as a result of service or modification by other than the manufacturer. The COMPANY MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY OTHER MATTER WITH RESPECT TO THIS PRODUCT, except as otherwise expressly stated in the previous paragraph. The Company shall not be liable for consequential or special damages. In order to place the warranty in effect, choose a form above and complete it entirely. Or you may fill out the registration card accompanying your product (if applicable) which must be returned to ACR Electronics, Inc. within ten days of purchase.



*Five Years for the following products:  EPIRB and PLB.
