Tri-band, 121.5, 243 & 406 MHz

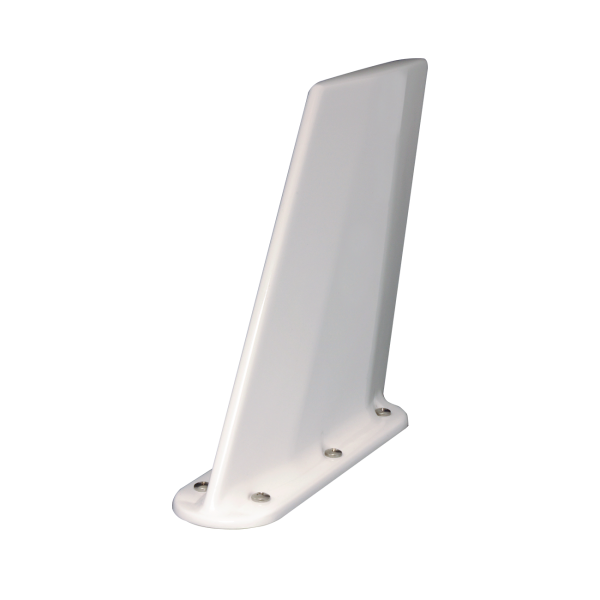

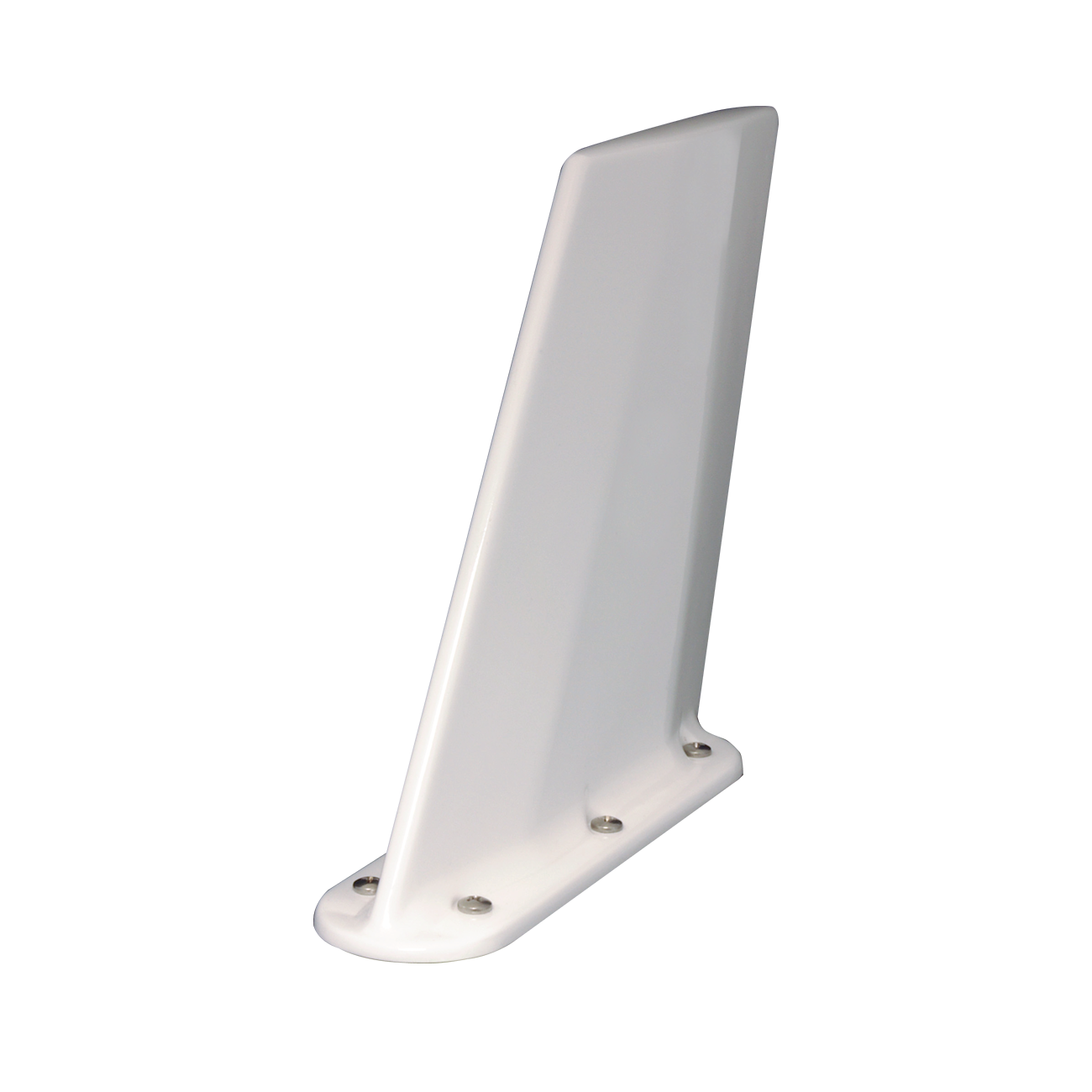

Tri-Band Blade high speed antenna provides our innovative Tri-Band technology, bringing the 121.5, 243, and 406 MHz frequencies into a compact package. The 110-340 offers a single connector for those installations that require this set-up.
Two Models Available:
| Weight | 0.00 lbs |
|---|---|
| Aircraft Speed | |
| Aircraft Type | Airliners, Large Jets, Light Jets, Mid-size Jets, Multi-Engine, Passenger Jet |
| Product |
| Frequency | 121.5, 243 & 406 MHz |
| VSWR | 2.0:1 – 121.5/243 MHz, 1.5:1 – 406 MHz |
| Polarization | Vertical |
| Radiation Pattern | Omni-directional |
| Impedence RF | 50 OHMS (nominal) |
| Power RF | 50 Watts |
| Weight | 1.4 lbs. |
| Height | 7.75” |
| Material | Molded blade |
| Finish | Polyurethane enamel |
| Connector | BNC (female) for 121.5, 243 & 406 MHz |
| Temperature | -55˚ C to + 85˚ C |
| Altitude | 55,000’ |
| Color | White (110-340), Gray (110-340-01) |
| Leading Edge Protection | Available on 110-340-01 |
Warranty coverage is effectively extended from previous warranties offered on Artex products. To qualify for warranty coverage, a customer must do one of two things.
1) Provide the original packing list from Artex with a shipping date on it. The warranty period expires 24 months from the date shipped on the packing list.
2) Provide proof of installation date (Logbook entry, signed copy of the FAA form 337 the ELT was installed under, or other documentation stating such).
If the customer is unable to provide either methods of documentation, the warranty will apply for 24 months from date of manufacture listed on the ELT product label, with a 6 month installation grace period – effectively 30 months.
For any inquiries regarding warranties, feel free to contact Artex products technical support at: artexsupport@acrartex.com or by phone at USA 954-981-3333.
