C406-2 HM

The Artex C406-2 HM is an emergency locator transmitter (ELT) that has been built to meet the rigorous requirements of TSO C126, and pass even the toughest safety tests. The C406-2 HM ELT automatically activates during a crash, and transmits a 406 MHz digital message to a worldwide network of satellites, which allows first responders to quickly and accurately identify not only where you are, but who you are as well. These factors help take the ‘search’ out of ‘search and rescue’, and allow local first responders to more easily bring you home.



Find a dealer

SKU: 453-5001 Category: Tags: , , , , ,

PRODUCT DESCRIPTION

The C406-2 HM has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests. The C406-2 HM is available for use with Artex’s low cost whip antennas, rod antenna, or a blade antenna and may be interfaced with the optional Artex ELT/NAV Interface enabling latitude and longitude data to be transmitted as part of the 406 MHz message. The C406-2 HM uses two coax cables to accommodate all three frequencies. The C406-2 HM ELT is available for helicopter applications with a multi-axis G-Switch.



ELT Pack List

Antenna Remote Switch & Accessories Manuals/Approvals/Downloads
ELT C406-2 HM 455-5001     Pack List
ELT C406-2 HM 455-5012 110-320 (White) & 110-320-04 (Black) 455-6196 Pack List
ELT C406-2 HM 455-5013 110-337 & 110-337-01 (Protective Edge) 455-6196 Pack List
ELT C406-2 HM 455-5049 110-320 (White) & 110-320-04 (Black) 455-6196 Pack List



ARTEX ELTs are the choice of rotorcraft aircraft including Sikorsky, Airbus Helicopters, AgustaWestland and Bell.

Additional information

Weight 0.00 lbs
Aircraft Type

Model C406-2 HM (Helicopter Model)


Antenna Options Available Rod: 110-320, Blade: 110-337


Operating Frequencies 406 MHz, 121.5 & 243. MHz +/- 0.005% (A3X)


Ouput Power 406 MHz: 5 W +/- 2 dB (520 ms / 50 sec) for 24 hours @ -20°C, 121.5/243.0 MHz: 100 mW min (+20 dBm) for 50 hours @ -20°C

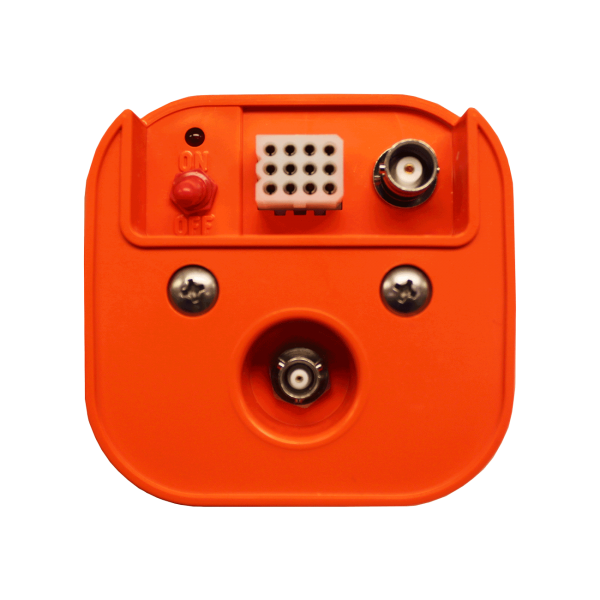

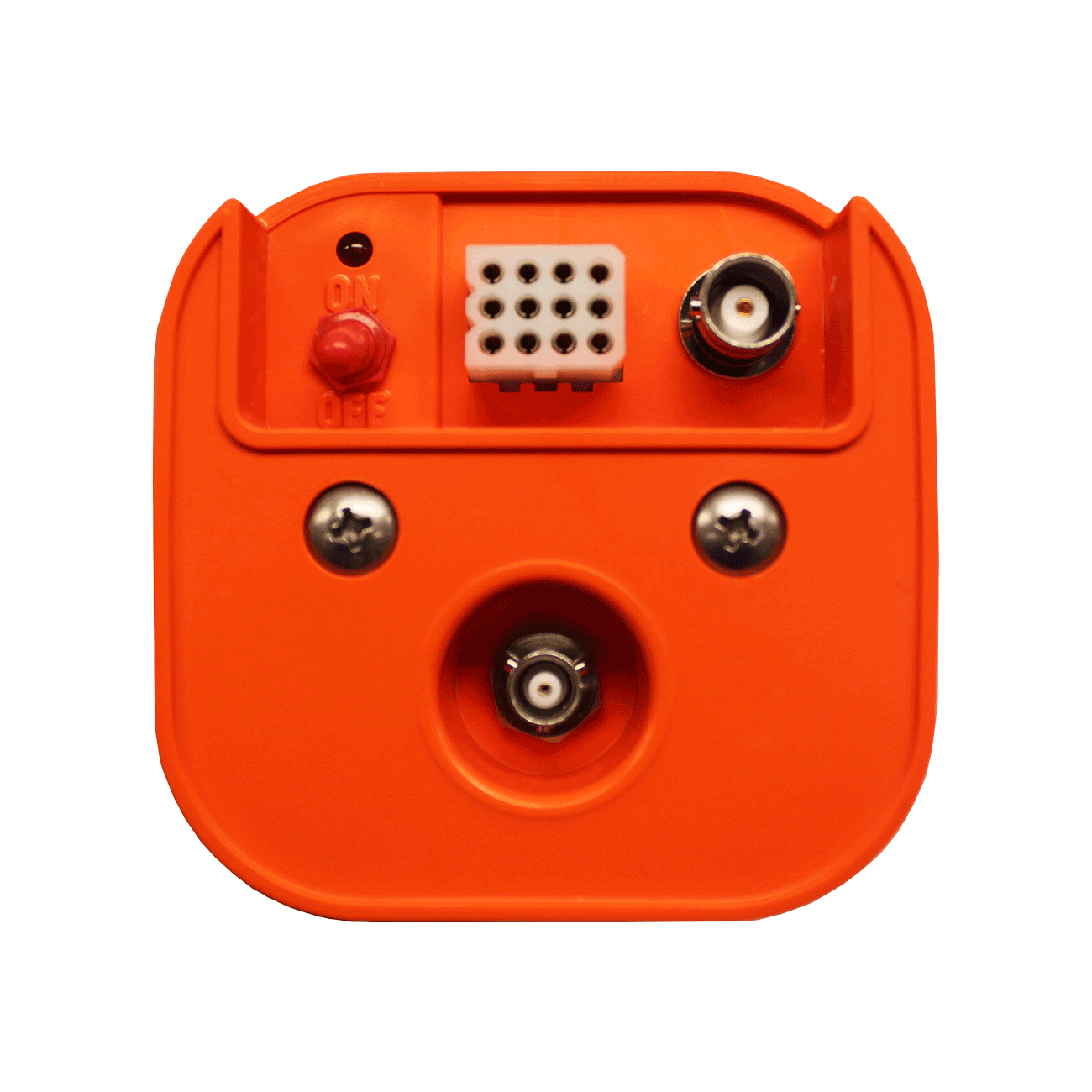

Output Connector BNC Female (121.5/243.0 MHz), TPS Female (406 MHz)


Activation Automatic by 4.5 feet per second (2.3G) Primary G-Switch, or 12.5 G (+/- 1 G) 5-Way HM G-Switch or Manual Activation


Battery 5 year Lithium (LiMnO2, solid cathode), Replacement Battery Part No. 452-0133


Temperature Certified to: Operating: -20°C to +55°C, Storage: -55°C to +85°C


Self Test G-Switch Enabled, 406 MHz Power, Antenna/Coax Connection, Position Data Present, Low Battery


Remote Switch ON/ARM


Weights (with tray) ELT Transmitter: 3 lb 5.8 oz Max (1.53 kg), Mounting Tray: 7 oz (200 g), Total Weight: 4 lb 11 oz (2.02 kg)


Measurements ELT Transmitter with mounting hardware installed 11.74” (298 mm)L x 3.9: (99 mm)H x 3.82” (97 mm)W

WARRANTY LENGTH: 30 MONTHS FROM DATE OF INSTALLATION OF THE GOODS ON BUYER\\\\\\\’S SOLUTION. 24 MONTHS FROM THE DATE OF DISPATCH OF GOODS BY THE SUPPLIER



Warranty coverage is effectively extended from previous warranties offered on Artex products. To qualify for warranty coverage, a customer must do one of two things.



1) Provide the original packing list from Artex with a shipping date on it. The warranty period expires 24 months from the date shipped on the packing list.



2) Provide proof of installation date (Logbook entry, signed copy of the FAA form 337 the ELT was installed under, or other documentation stating such).



If the customer is unable to provide either methods of documentation, the warranty will apply for 24 months from date of manufacture listed on the ELT product label, with a 6 month installation grace period – effectively 30 months.



For any inquiries regarding warranties, feel free to contact Artex products technical support at: artexsupport@acrartex.com or by phone at USA 954-981-3333.
