TS 8701 – Tester Set

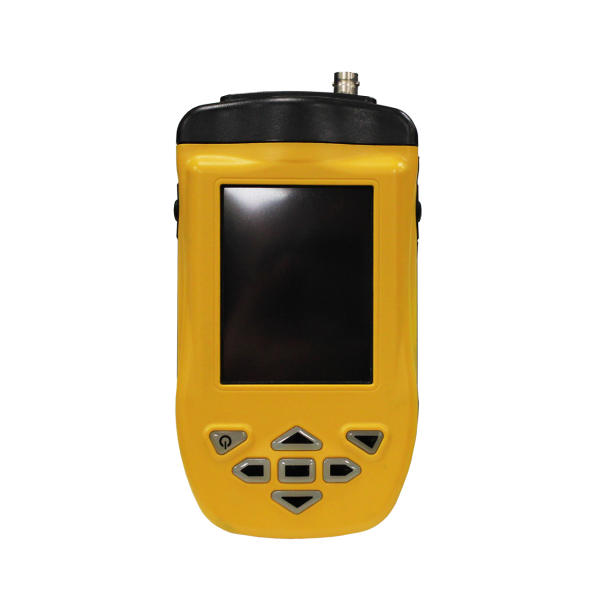

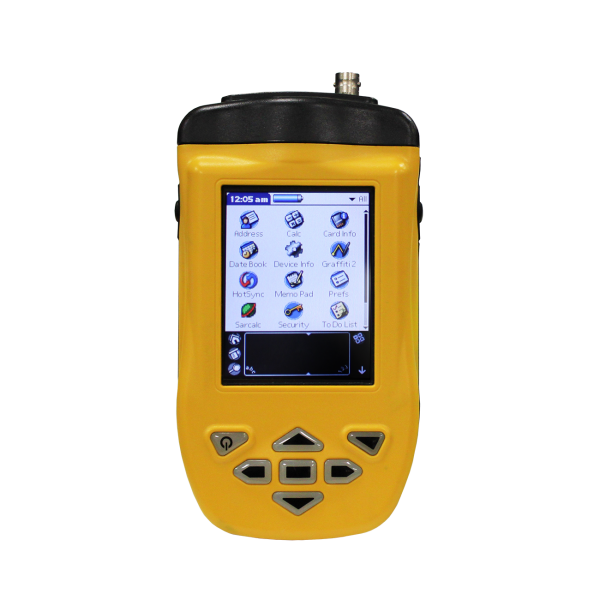

The ARTEX 8701 Tester is the only system you need to test and verify all ARTEX ELTs. Its compact, portable design makes it convenient to keep on hand so you can easily test any ELT, any time.


SARCALC Desktop Software

Find a dealer


ELT Testing and Verification of ELT ID

Aircraft Emergency Locator Transmitters (ELTs) are required to have their unique identification number registered with the national authorities. The ARTEX Tester provides a simple method to verify and save the ARTEX ELTs ID after installation, reprogramming or should the beacon need to be re-registered after an aircraft ownership change.

ELT Decoding

The ARTEX Tester decodes the transmission of 406 MHz Cospas-Sarsat transmissions. The transmission can be read directly though the antenna cable or through the antenna itself. The unit will also indicate if 121.5 MHz is present. The Tester is a decoding device only and does not measure power. Please contact your local authority for ELT measurement requirements for annual inspections.

Test Data

The ARTEX Tester records all data in an internal database which can be backed up to your PC. The data can be viewed on the computer independently of the Tester, and it is time stamped as proof of transmission and proper programming. The Tester can print via a USB interface to a PC. The printing capability requires a downloadable software program available at ACRARTEX.com.


*All features of 8701 are only applicable to ARTEX ELTs.

Test & Programming Feature Chart TPS 8700 TS 8701 TPS 8715
Verification of ELT ID and Decoding of 406 MHz Transmission x x x
Testing for Presence of 121.5 MHz and 243 MHz Transmissions x x x
Programming ARTEX General Aviation ELTs Only (reference PN 8700 for unit that is also capable of Transport Level ELT Programming)     x
Programming all ARTEX ELTs x
Data backup to PC x x x
Print Capability via USB interface to a PC x x x
Software Included with Product x x
Software not Included with Product (software downloaded after product is received by customer)     x

Additional information

Weight 0.00 lbs

Model TS 8701
Product Number 8701
406.025 Receiver Range -60dBm to + 36dBm (5W Signal)
Decoding Per Cospas-Sarsat C/S T.001 (Issue 3, Revision 5)
Operating System Windows CE 5.0 /Garnet OS 5.4
Microprocessor 400 MHz Samsung
Memory (Volatile) / Memory (Non-Volatile) / Memory (Expansion) 64 megabytes SDRAM / 128 megabytes Flash / via MZIO™ bus standard
Display – LCD Type TFT High Brightness Touch Screen
Display – Resolution 240 x 320 pixels
Display – Viewable Area 3.5″
Display – Backlight LED
Communications – USB 1 megabyte / sec
Communications – Serial (RS232) 1200 to 115200 bits / sec
Communications – Infrared (IrDA) 1200 to 115200 bits / sec at 1meter
Communications Connector 13 pin – custom gold plated pins
Battery Type Lithium Ion, custom battery pack
Battery Voltage 7.4V nominal
Battery Capacity 1700 mAh
Battery Protection Over charge / discharge and thermal
Battery – Charging Current 1.2A (maximum). Via cradle (not provided) or communications cable
Battery – Charging Input 12V DC nominal (use only charger supplied)
Dimensions (w/o Antenna) 6.7” (170mm) (L) x 3.7”(94mm) (W) x 1.53” (39mm) (H)
Weight (Approx., w/antenna) 1 LB (456gm)
Operating Temperature / Storage Temperature / Humidity -10°C to 60°C / -20°C to 65°C / 5% to 90% relative humidity
RFI / EMC CSPR22, CSPR24 (RF emissions & ESD immunity)
FCC / CE / Sealing Part 15, Class A / EU EMC Directive / IP67 (submersible to 1 meter – 30 min)
Current Consumption: Power On / Full System / Sleep Mode 130mA typical (Meazura only – backlight off) / 60mA typical (Backlight on) / 7mA typical
