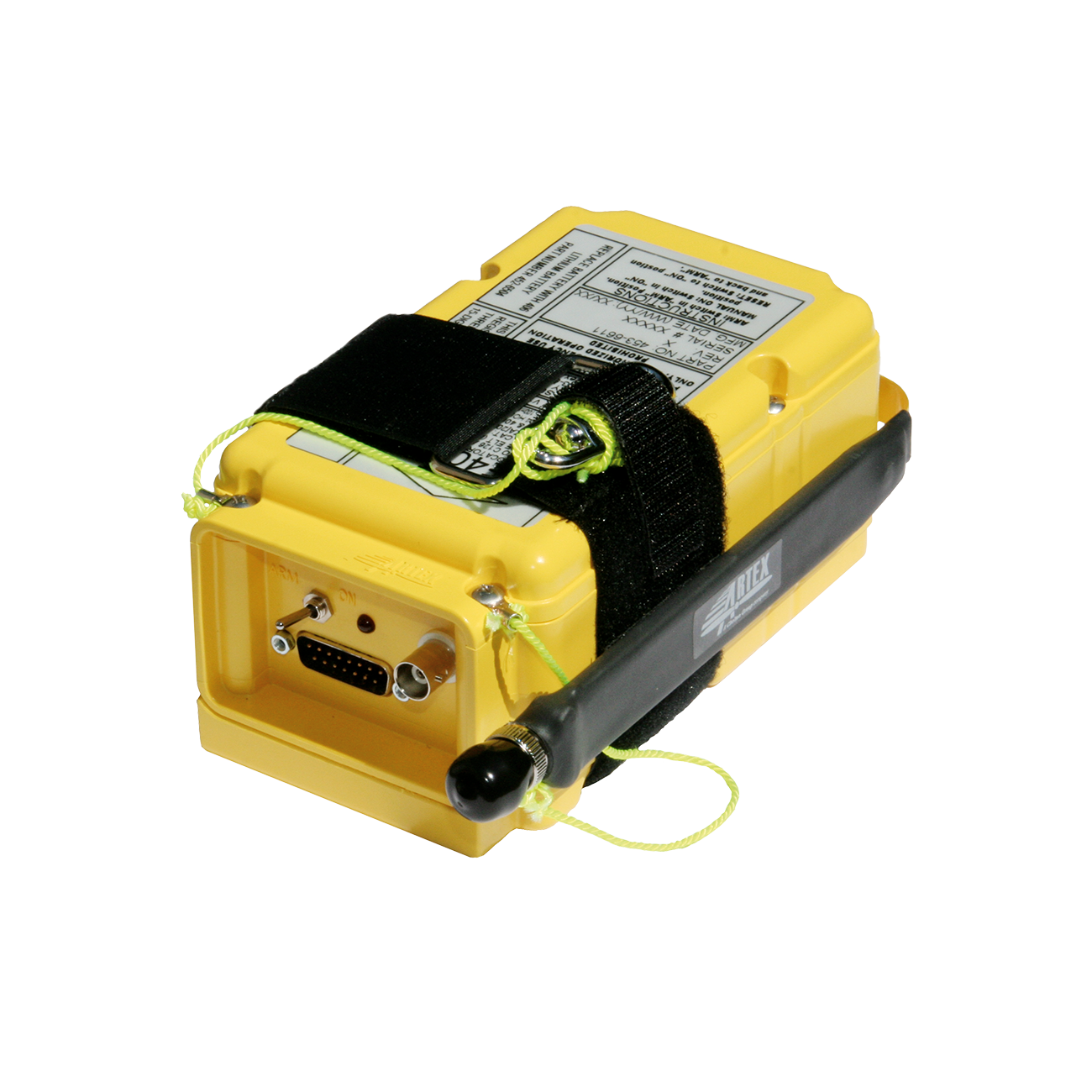

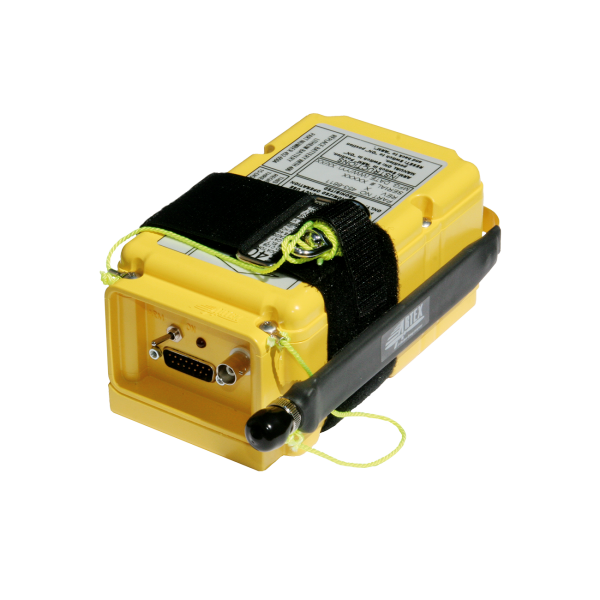

ME406 Portable ELT

Soar safely through the skies with the single-output ME406 Portable ELT by your side. If you should ever have to activate this ELT, the 406 MHz transmitter sends an encoded signal every 50 seconds to alert search and rescue teams of your situation. Plus, should circumstances require you to move away from your aircraft and to a more protected or accessible area, the wrap-around auxiliary antenna will continue to transmit your distress signal, even after the ELT has been removed from the aircraft.

This product has been discontinued.

Find a dealer

PRODUCT DESCRIPTION

Should circumstances require a move to a more protected or accessible area, the wrap-around auxiliary antenna allows continued transmission of the distress signal, after removing the ELT from a downed aircraft.

A lanyard connected to the ME406P allows the user to secure the ELT to a person or object in order to avoid loss or potential damage to the unit.

ARTEX ELTs are the choice of general aviation aircraft including Cessna, Piper, Cirrus, Beechcraft, Diamond, and Quest.

Compatibility Simplifies Installation

The mounting tray of the ME406P series is compatible with all previous models of Artex 406 MHz ELTs, as well as the ELT-200 series, Pointer Model 3000, Narco and ACK E-01 ELTs.



ELT Pack List

Antenna Remote Switch & Accessories Manuals/Approvals/Downloads
ELT ME406/P 455-6613 110-775
110-338 (White) & 110-338-01 (Black)
  Pack List
ELT ME406/P 455-6615 110-775 455-6196 Pack List

Additional information

Weight 0.00 lbs
Product

Model ME406 P (Portable)
Antenna Options Available Rod: 110-338, Whip: 110-773
Operating Frequencies 406 MHz, 121.5 MHz +/- 5 KHz
Ouput Power 406 MHz: 5W (440 ms/ 50 sec) for 24 hours @ -20°C to +55°C, 121.5 MHz: 100mW min for 50 hours @ -20°C to +55°C
Output Connector BNC Female (406 MHz & 121.5)
Activation Automatic by 4.5 feet per second (2.3 G) Primary G-Switch or Manual Activation
Battery 6 year Lithium (LiMnO2, solid cathode), Replacement Battery Part No. 455-0012
Temperature Certified to Operating: -20°C to +55°C, Storage: -55°C to +85°C
Self Test G-Switch Enabled, 406 MHz Power, Antenna/Coax Connection, Low Battery
Remote Switch On/ARM
Weights (with tray) Total Weight: 2.20 lbs (1000 g), Auxiliary Antenna: 2.2 oz (65g)
Measurements 6.59” (167 mm)L x 2.86” (73 mm)H x 3.69” (94 mm)W

WARRANTY LENGTH: 30 MONTHS FROM DATE OF INSTALLATION OF THE GOODS ON BUYER’S SOLUTION. 24 MONTHS FROM THE DATE OF DISPATCH OF GOODS BY THE SUPPLIER

Warranty coverage is effectively extended from previous warranties offered on Artex products. To qualify for warranty coverage, a customer must do one of two things.

1) Provide the original packing list from Artex with a shipping date on it. The warranty period expires 24 months from the date shipped on the packing list.

2) Provide proof of installation date (Logbook entry, signed copy of the FAA form 337 the ELT was installed under, or other documentation stating such).

If the customer is unable to provide either methods of documentation, the warranty will apply for 24 months from date of manufacture listed on the ELT product label, with a 6 month installation grace period – effectively 30 months.

For any inquiries regarding warranties, feel free to contact Artex products technical support at: artexsupport@acrartex.com or by phone at USA 954-981-3333.
