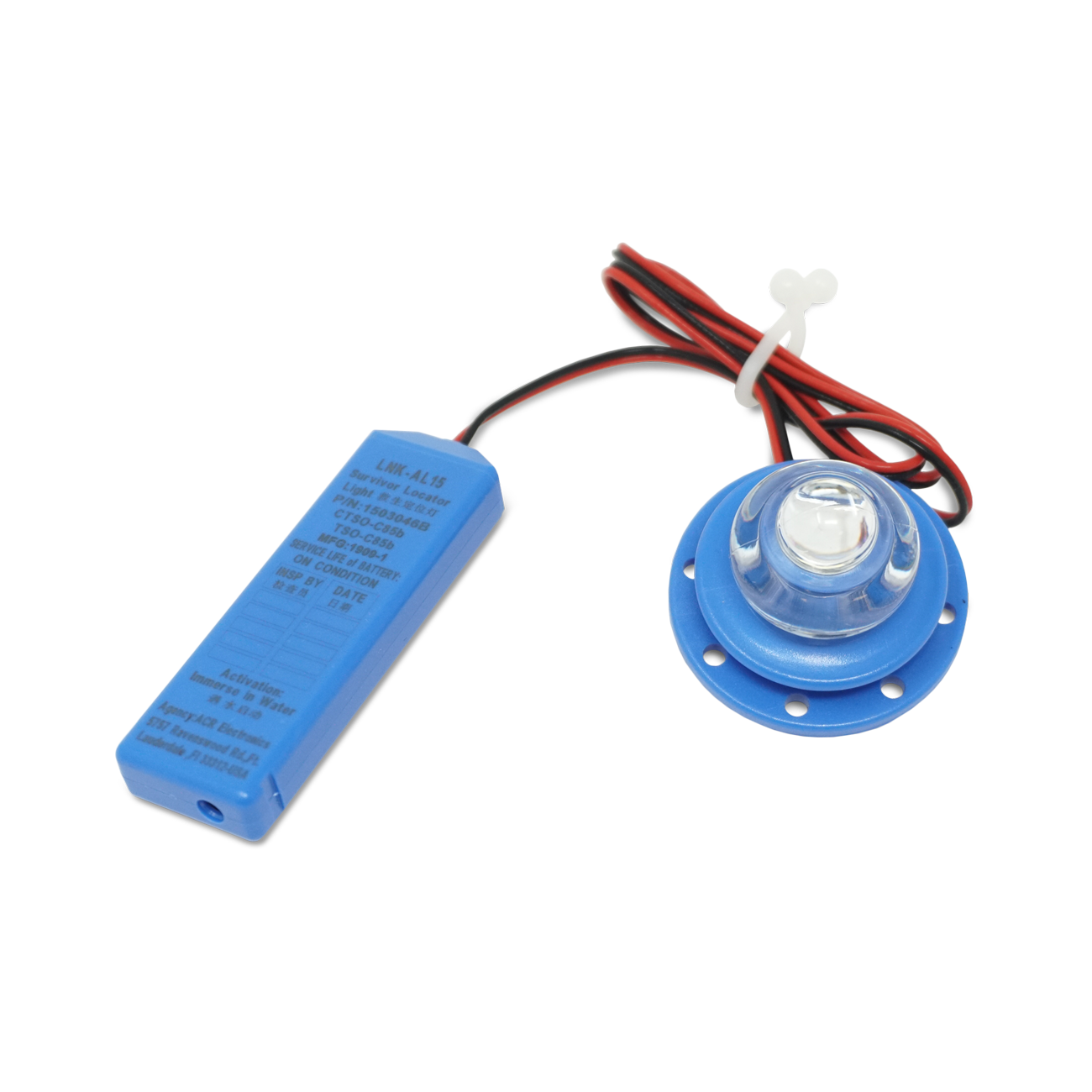

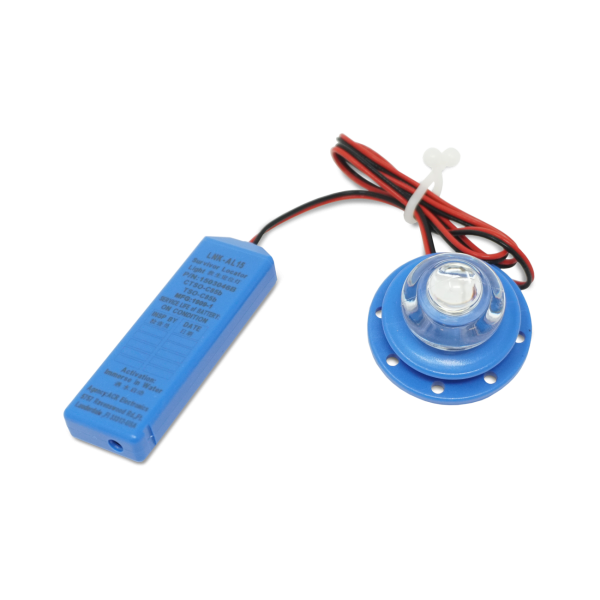

LNK-AL15

The LNK-AL15 is an FAA approved water-activated LED survivor locator light that is approved for use on life vests or life preservers in order to indicate the location of survivors in water as a result of an aviation related accident. The lamp and lens combo of the LNK-AL15 produce a powerful light that will last for a minimum of 8 hours after activation with a minimum light intensity of 1 cd. Throughout its entire operational life, the light will continuously output a steady white light to clearly indicate a survivor’s location and increase the probability of rescue.

PRODUCT DESCRIPTION

The LNK-AL15 light is available under the three different part numbers listed below which correspond with different wire lengths. The ability to offer multiple wire lengths provides a greater level of flexibility for different installation scenarios. The LNK-AL15 available wire lengths are 9”, 18”, and 24”.

ACR Part Numbers:

1503023B – 9” (23 cm) Wire Length

1503046B – 18” (46 cm) Wire Length

1503061B – 24” (61 cm) Wire Length

Features and Benefits:

High Efficiency LED Bulb
Simple Life Jacket Integration
Ultra Small and Light Weight Design
Water Activated (Fresh and Salt Water)
Indefinite Battery Storage Life*

*Assuming light does not accidentally come into contact with water and is stored as per stated storage requirements

Additional information

Weight	0.99 lbs
Dimensions	20.28 × 17.87 × 12.99 in
Aircraft Type	Airliners, Experimental, Large Jets, Light Jets, Mid-size Jets, Multi-Engine, Passenger Jet, Rotocraft, Single Engine, Turboprop

Name	LNK-AL15 Aviation Survivor Locator Light
Product Description	Reserve Battery Powered Aviation Survivor Locator Light
Model Number	LNK-AL15
Light Source	LED
Light Type	Steady White Light
Weight	0.99 oz – 1.11 oz (28g – 31.5g) / Depending on Wire Length
Dimensions	Battery Pack Body: 2.55 x 0.82 x 0.36” (64.9 x 20.8 x 9.2 mm) Lamp: 1.5” (diameter) x 1.06” (H) (38.2 x 26.9 mm)
Battery	Water-Activated Reserve Battery
Activation	Automatic (Water-Activation)
Activation Time	Within 2 minutes in either fresh or salt water
Light Intensity	> 1 cd
Horizonal Light Angle	>= 300⁰
Vertical Light Angle	>= 5⁰
Operational Life	>= 8 hours
Storage Humidity	<= 80%
Operational Temperature	2⁰C – 30⁰C (35.6⁰F – 86⁰F)
Storage Temperature	-30⁰C – 65⁰C (-22⁰F – 149⁰F)
Exposed Length of Wire	9” – 24” (based on specific product number)
Warranty	1 year
Approvals	TSO-C85b

WARRANTY LENGTH: 1 YEAR

This product is warranted against factory defect in material and workmanship for a period of 1 (one)* year from date of purchase or receipt as a gift. During the warranty period ACR Electronics, Inc. will repair or at its option, replace at no cost to you for labor, materials or return transportation.

For further assistance, please contact our Technical Service Department at :

ACR Electronics, Inc.
5757 Ravenswood Road
Fort Lauderdale, FL 33312-6645.

Email: service@acrelectronics.com, Fax: +1 (954) 983-5087, Telephone: +1 (954) 981- 3333.

This warranty does not apply if the product has been damaged by accident or misuse, or as a result of service or modification by other than the manufacturer. The COMPANY MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY OTHER MATTER WITH RESPECT TO THIS PRODUCT, except as otherwise expressly stated in the previous paragraph. The Company shall not be liable for consequential or special damages. In order to place the warranty in effect, choose a form above and complete it entirely. Or you may fill out the registration card accompanying your product (if applicable) which must be returned to ACR Electronics, Inc. within ten days of purchase.

*Five Years for the following products: EPIRB, PLB
