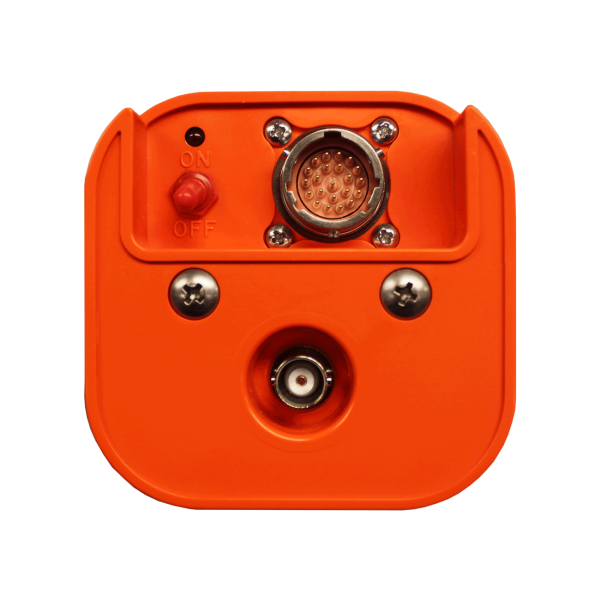

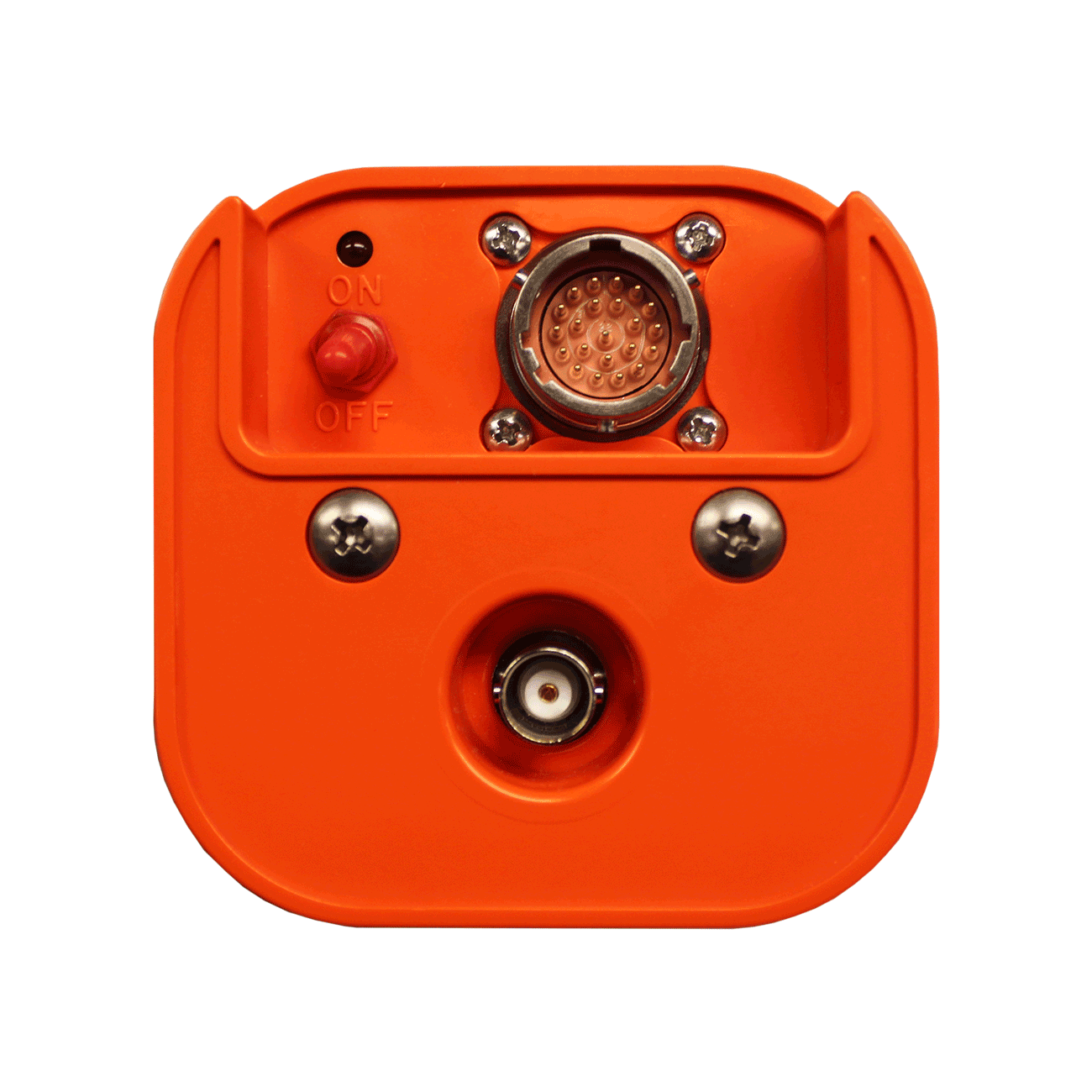

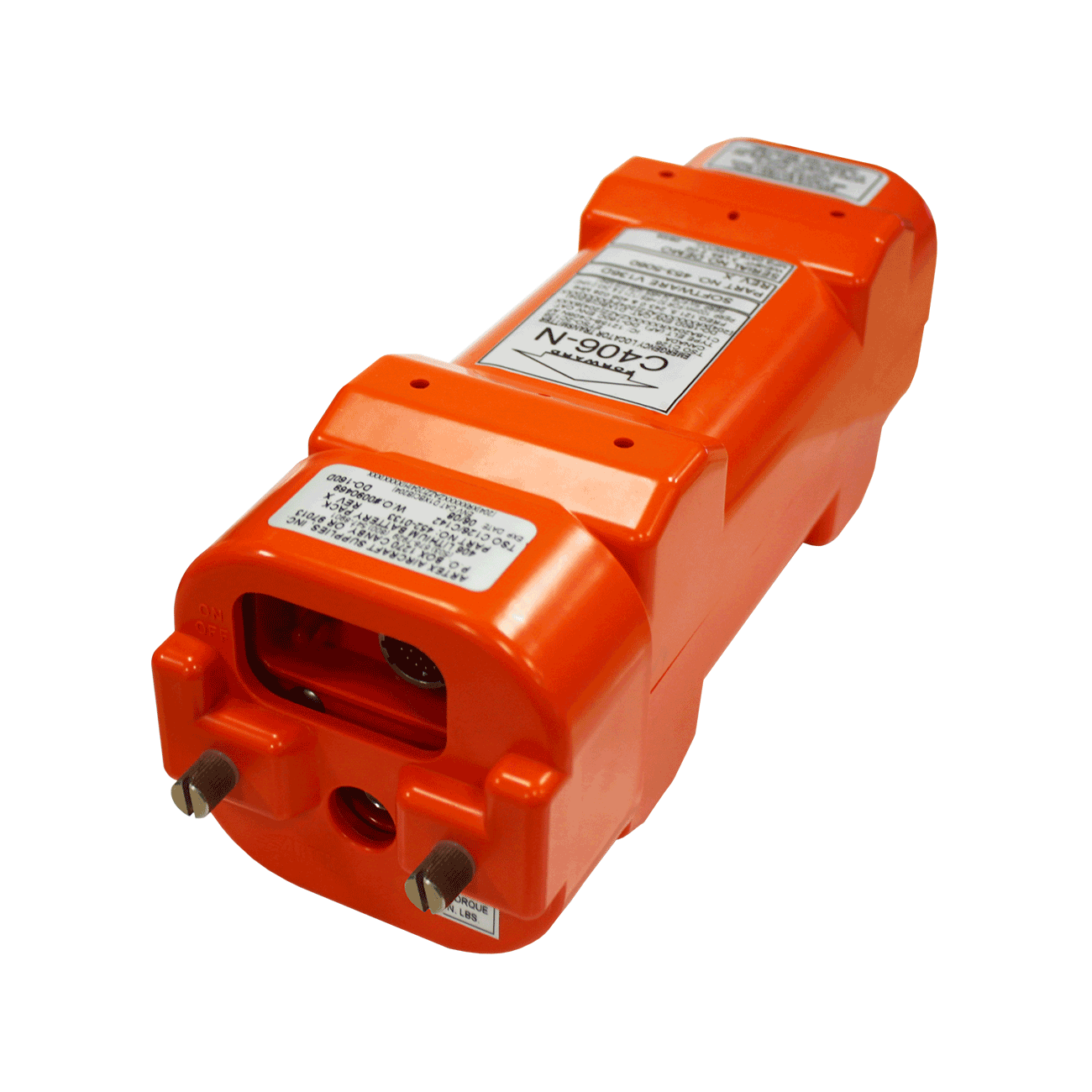

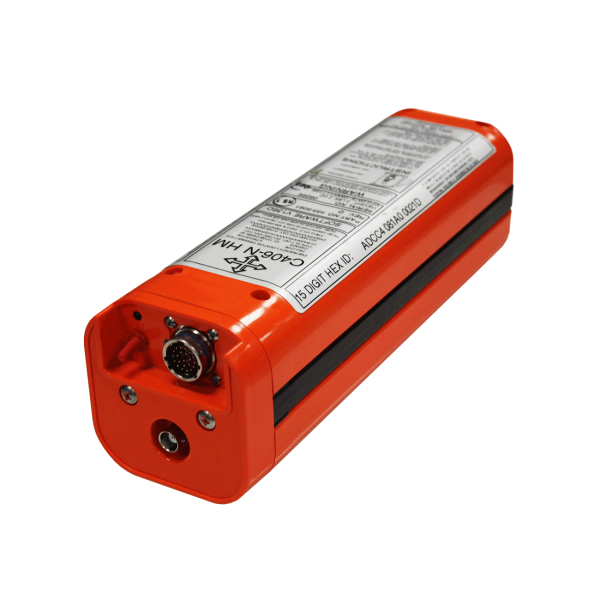

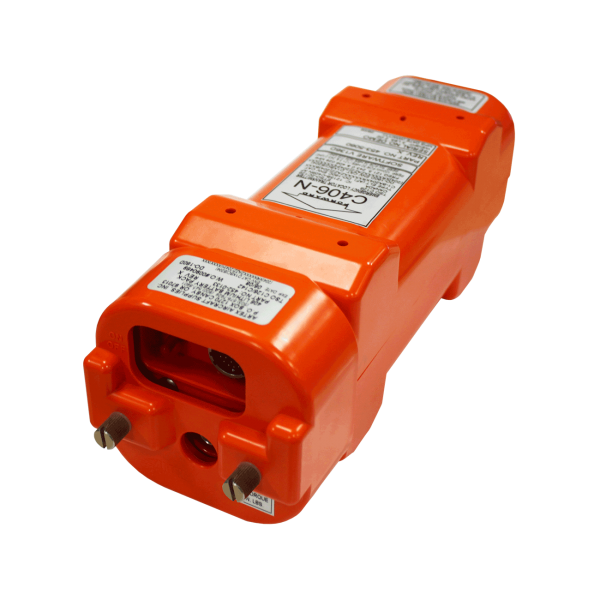

C406-N HM

The Artex C406-N HM is a single output emergency locator transmitter (ELT) that contains the latitude/longitude information from the aircraft navigation system. Following long message protocol, the 406 MHz transmitter turns on and transmits an encoded digital message to the Cospas/Sarsat satellite system every 50 seconds for 520 milliseconds. During a crash, the ELT automatically activates and transmits the standard swept tone on 121.5 and 243.0 MHz.

SKU: 453-5061 Category: Aviation Tags: artex c406, artex c406-1, artex me 406, artex me406, C406-N HM, eletronic local transmitter, ELT, emergency locator transmitter

PRODUCT DESCRIPTION

By use of an optional programming adapter, the ELT can also be programmed with the aircraft’s 24-bit address for fleet operators as well as other custom programming. The C406-N HM ELT is available for helicopter (HM) applications with a multi-axis G-Switch.

ARTEX ELTs are the choice of rotorcraft aircraft including Sikorsky, Airbus Helicopters, AgustaWestland and Bell.

ELT Pack List

	Antenna	Remote Switch & Accessories	Manuals/Approvals/Downloads
ELT C406-N HM 455-5061		455-6196	Pack List
ELT C406-N HM 455-5064	110-338 (White) & 110-338-01 (Black)	455-6196	Pack List

Additional information

Weight	0.00 lbs

Model	C406-N HM (Helicopter Model)
Antenna Options Available	Rod: 110-338, Blade: 110-340
Operating Frequencies	406 MHz, 121.5 & 243. MHz +/- 0.005% (A3X)
Ouput Power	406 MHz: 5 W (520 ms / 50 sec) for 24 hours @ -20°C to +55°C, 121.5/243.0 MHz: 100 mW min (+20 dBm) for 50 hours @ -20°C to +55°C
Output Connector	BNC Female (121.5/243.0/406 MHz)
Activation	Automatic by 4.5 feet per second (2.3G) Primary G-Switch, or 12.5 G (+/- 1 G) 5-Way HM G-Switch or Manual Activation
Battery	5-year Lithium (LiMnO2, solid cathode), Replacement Battery Part No. 452-0133
Temperature Certified to:	Operating: -20°C to +55°C, Storage: -55°C to +85°C
Self Test	G-Switch Enabled, 406 MHz Power, Antenna/Coax Connection, Position Data Present, Low Battery
Remote Switch	ON/ARM
Weights (with tray)	ELT Transmitter: 3 lb 5.8 oz Max (1.53 kg), Mounting Tray: 7 oz (200 g), Total Weight: 4 lb 11 oz (2.02 kg)
Measurements	ELT Transmitter with mounting hardware installed 11.74” (298 mm)L x 3.9: (99 mm)H x 3.82” (97 mm)W

WARRANTY LENGTH: 30 MONTHS FROM DATE OF INSTALLATION OF THE GOODS ON BUYER\\\’S SOLUTION. 24 MONTHS FROM THE DATE OF DISPATCH OF GOODS BY THE SUPPLIER

Warranty coverage is effectively extended from previous warranties offered on Artex products. To qualify for warranty coverage, a customer must do one of two things.

1) Provide the original packing list from Artex with a shipping date on it. The warranty period expires 24 months from the date shipped on the packing list.

2) Provide proof of installation date (Logbook entry, signed copy of the FAA form 337 the ELT was installed under, or other documentation stating such).

If the customer is unable to provide either methods of documentation, the warranty will apply for 24 months from date of manufacture listed on the ELT product label, with a 6 month installation grace period – effectively 30 months.

For any inquiries regarding warranties, feel free to contact Artex products technical support at: artexsupport@acrartex.com or by phone at USA 954-981-3333.
