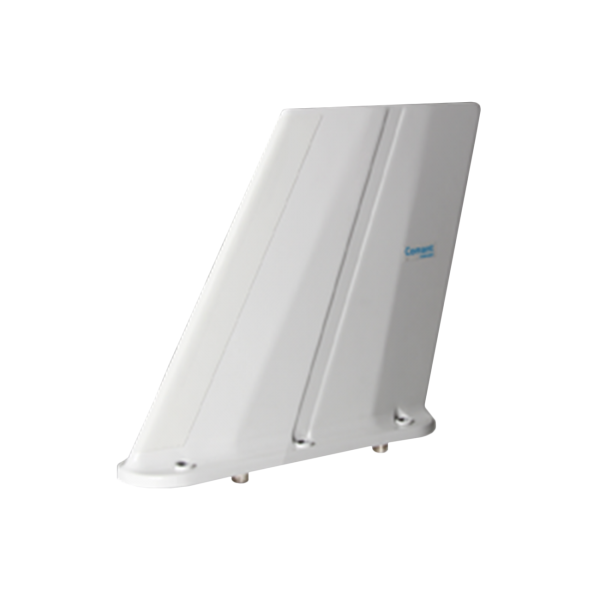

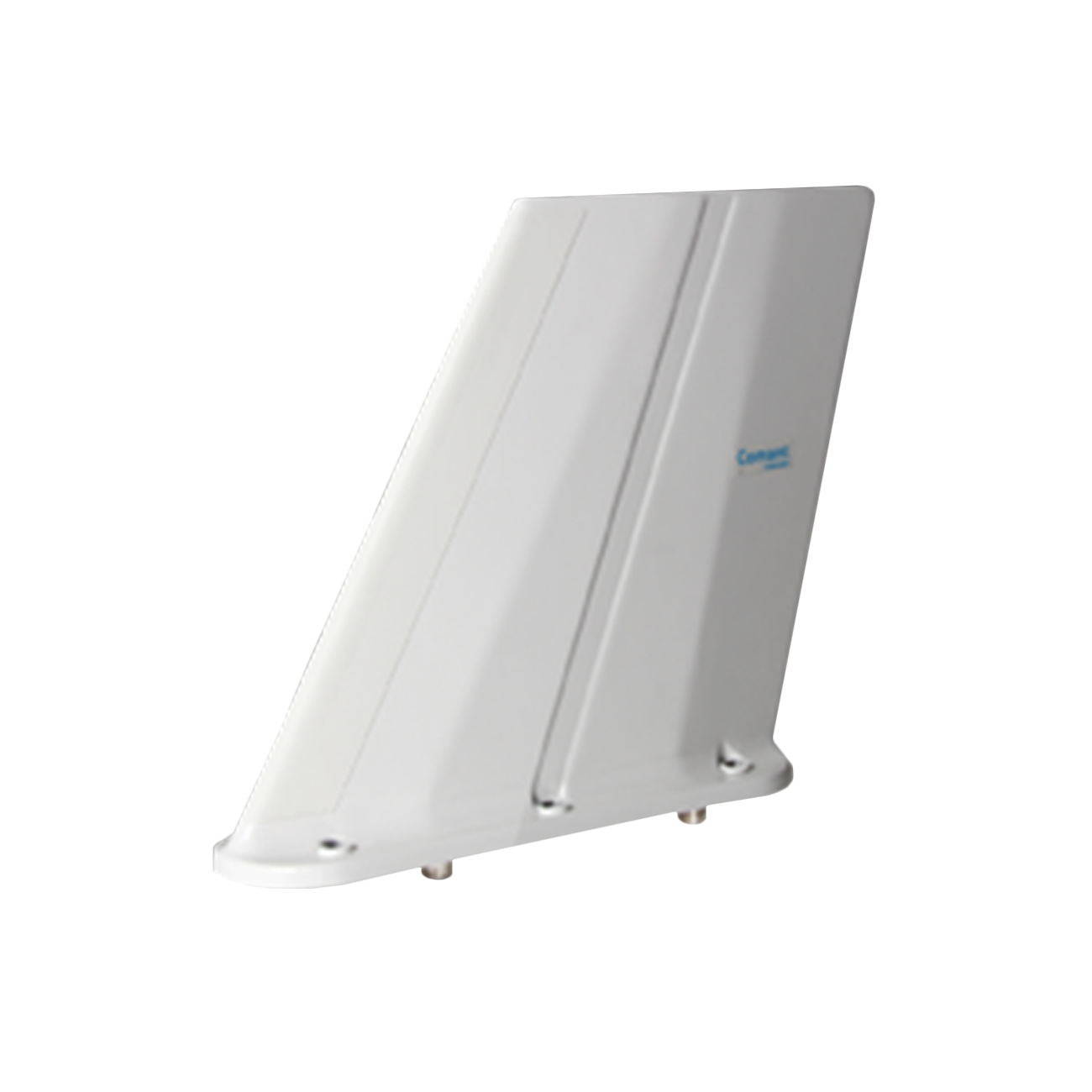

The 110-337-11 Antenna is equipped with our innovative Tri-Band technology, which brings the 121.5, 243, and 406 MHz frequencies into one compact package. This high-speed blade antenna offers two connectors for those installations that require this particular set-up. Plus, we offer two secure bonding methods for attaching this antenna to your aircraft: screw mounting or base plate mounting. Like all our equipment, this antenna is designed to meet industry standards. This product is compliant with TSOA C91a requirements and the Eurocae ED 62 flame test.
Tri-Band high speed blade antenna, bringing the 121.5, 243, and 406 MHz frequencies into a compact package. The 110-337-11 offers two connectors for those installations that require this set-up. Designed to meet TSOA C91a requirements, plus the Eurocae ED 62 flame test.
Offers two secure bonding methods for attaching the antenna to the aircraft. Select either screw mounted or base plate mounting.
| Weight | 0.00 lbs |
|---|
| Frequency | 121.5 to 243 MHz & 406 MHz |
| VSWR | 2.0:1 MAX 2.0:1 MAX 1.5:1 MAX |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Impedence RF | 50 OHMS (nominal) |
| Power RF | 50 Watts |
| Weight | 1.6 lbs. maximum |
| Height | 7.85” maximum |
| Material | Molded blade |
| Finish | Polyurethane White Paint |
| Connector | BNC 121.5 & 243 MHz port, TNC 406 MHz port |
| Temperature | -55˚ C to + 85˚ C |
| Altitude | 50,000’ |
| Color | White |
| Gasket | Artex P/N 280-0340 (sold separately) |
Warranty coverage is effectively extended from previous warranties offered on Artex products. To qualify for warranty coverage, a customer must do one of two things.
1) Provide the original packing list from Artex with a shipping date on it. The warranty period expires 24 months from the date shipped on the packing list.
2) Provide proof of installation date (Logbook entry, signed copy of the FAA form 337 the ELT was installled under, or other documentation stating such).
If the customer is unable to provide either methods of documentation, the warranty will apply for 24 months from date of manufacture listed on the ELT product label, with a 6 month instalation grace period – effectively 30 months.
For any inquiries regarding warranties, feel free to contact Artex products technical support at: artexsupport@acrartex.com or by phone at USA 954-981-3333.
