AISLink CB2 Class B+ AIS Bundle with Two Ocean Signal rescueMe MOB1 AIS with DSC Beacons

Home

/

Marine

/

AISLink CB2 Class B+ AIS Bundle with Two Ocean Signal rescueMe MOB1 AIS with DSC Beacons

AISLink CB2 Class B+ AIS Bundle with Two Ocean Signal rescueMe MOB1 AIS with DSC Beacons

$1,009.95

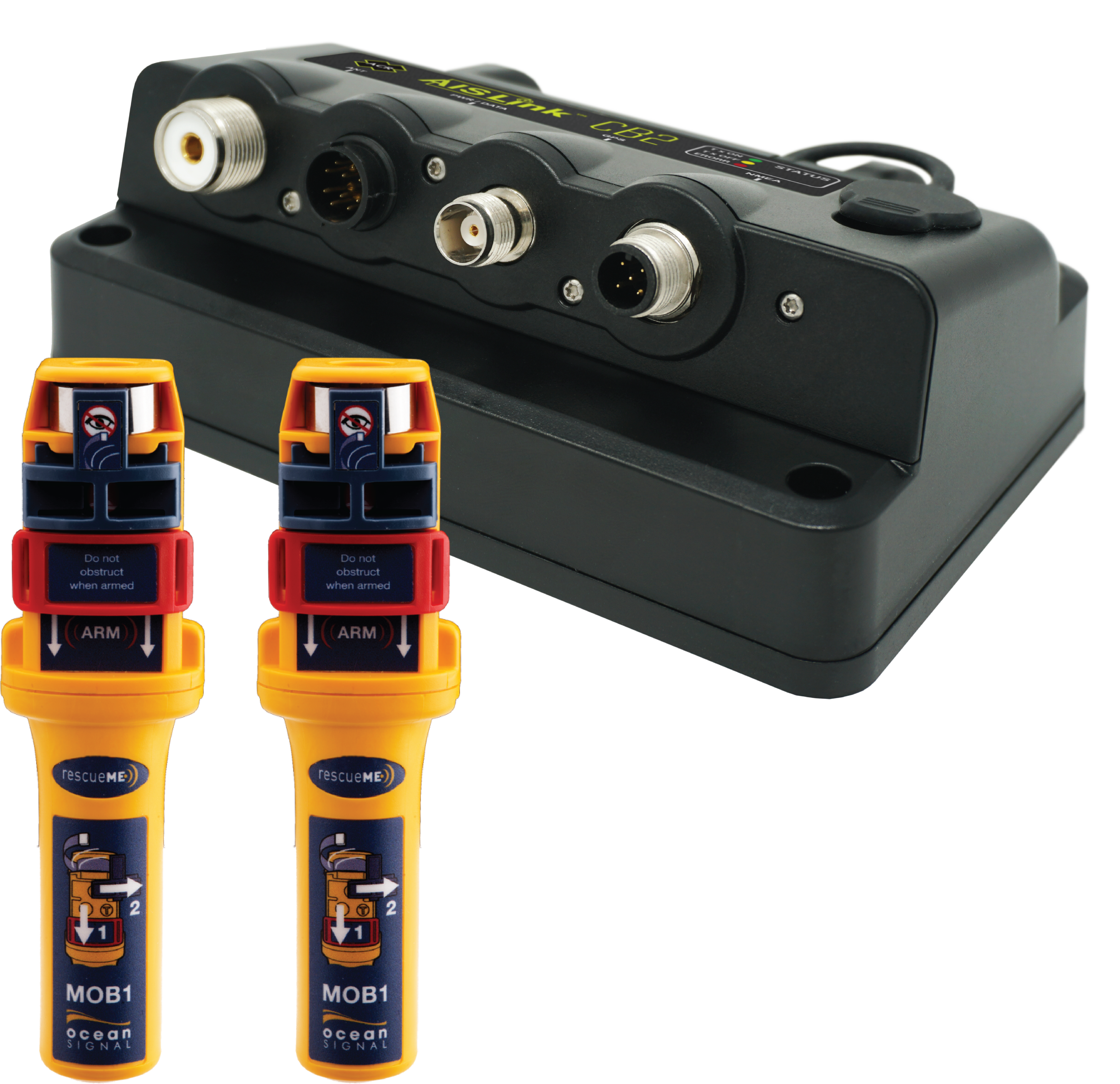

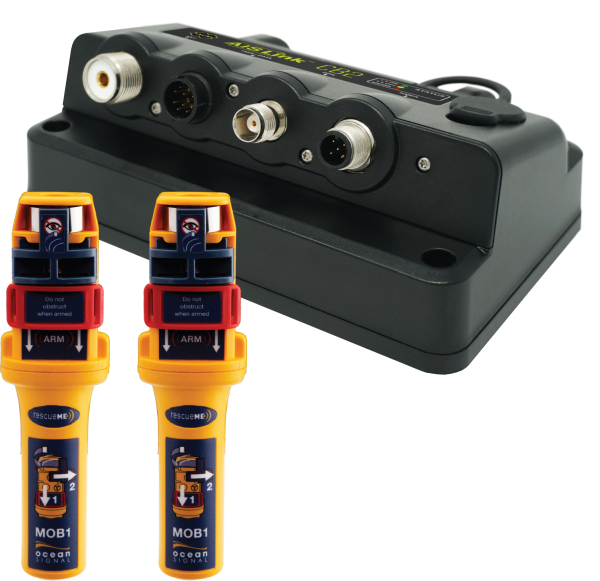

The new AISLink CB2 AIS Kit with MOB is the ultimate AIS package.  With the latest in AIS Class B+ technology in the AISLink CB2 and best selling AIS Man Overboard Beacon in the Ocean Signal rescueMe MOB1, this bundle brings safety to a new level of affordability.

AISLink CB2 Configuration Program



WARNING: PROP 65

Find a dealer

PRODUCT DESCRIPTION

The AISLink CB2 AIS Transponder is a fully compliant, waterproof Class B+ transceiver designed to help avoid collisions. Using advanced SOTDMA (Self Organized Time Division Multiple Access) technologies from Class A transponders, the AISLink CB2 marine AIS system features inherent advantages, including a faster reporting rate and a higher output power in relation to all Class B products that use the older CSTDMA (Carrier Sense Time Division Multiple Access) technologies on the market.

This AIS Kit with MOB includes two (2) Ocean Signal MOB1 rescueMe AIS Beacons, your AISLink CB2 is also now your complete Man Overboard system.  The MOB1 communicates with your AISLink CB2 as well as other vessels in the vicinity (up to 5 miles range dependent on conditions). In an emergency rescueME MOB1 provides 2 methods of rapidly communicating your position, accurate to a few meters,  back to the vessel, plus providing a visual indication via its built-in strobe light.

The best chance of rapid rescue if you fall overboard comes from your own vessel. Your crew needs to be immediately aware of the incident and keep track of your position whilst recovery is carried out. Even in the most moderate of seas, it is alarming how quickly a visual sighting of a man overboard can be lost.

Using technology from Class A AIS, the CB2 has a faster reporting rate with reserved time slots for transmissions to ensure your broadcast does not get blocked in high traffic areas.  The AISLink CB2 will transmit every 5 seconds while older Class B AIS units can only transmit once every 30 seconds.  The CB2 also transmits at 5 watts of power, versus older Class B AIS that only transmit at 2 watts, broadcasting to a larger area for improved visibility.

Utilizing 99 acquisition channels and 33 tracking channels, the internal multi-GPS receiver continuously transmits your vessel information including position, speed, course, and heading, ensuring an indication of the most accurate global positioning at all times. In addition to transmission of dynamic vessel information, the AISLink CB2 also continuously transmits static information including vessel name, call sign, vessel type, vessel dimensions, and MMSI number.

Programming static information into the AISLink CB2 proves effortless as the user has the ability to simply upload this information via Wi-Fi using ACR’s free mobile app. For increased flexibility for the maximum number of users, the app is conveniently available from either the App Store (Apple) or the Google Play Store (Android).

Upon completion of the quick and easy installation process, the AISLink CB2 marine AIS system receives and interprets messages from other AIS-equipped vessels within range and then seamlessly communicates this information to other navigation devices on your vessel such as chart plotters, laptops, or mobiles using the CB2’s NMEA 0183, NMEA 2000®, USB or WiFi outputs.

A primary benefit that users can rely on is the transmission priority provided by the AISLink CB2 Marine AIS System due to the use of the SOTDMA access scheme versus CSTDMA. The use of SOTDMA guarantees the same AIS transmission priority as a class A transponder, ensures a faster reporting rate with transmissions every 5 seconds instead of every 30 seconds, and also ensures a higher output power of 5 Watts instead of 2 Watts. These features not only allow the CB2 to convey a more “real-time” picture of your vessel’s position but also enables your transmissions to reach further.

Additional benefits include a multi-color LED indicator light communicating the ongoing operational status of the unit. Given that the CB2 also comes complete with an external GPS antenna, users have the ability to be transmitting AIS messages and enjoying the many benefits of the AISLink CB2 within minutes of install.

The AISLink CB2 provides a significant advantage in navigational safety, giving you the peace of mind that your vessel will be seen day or night on even the busiest waterways, regardless of what the weather may be.

As a leader in life-saving marine products for both professional and recreational use, ACR provides unparalleled safety and peace of mind with the AISLink CB2 AIS Transceiver.

AISLink CB2 AIS Kit with MOB Features and Benefits:

  • AISLink CB2 (Class B+) Marine AIS System (1 Included)
    • 5 Watts of Power – More than double that of older Class B units
    • 12 Times the Transmissions Per Minute – 12 Times Versus 2 transmissions with CSTDMA
    • Guaranteed Time Slot Reservations
    • Increased visibility to other vessels
    • FREE user-friendly mobile app for set up and controls
    • Wi-Fi, USB, NMEA 0183, and NMEA 2000 connectivity
    • Superior internal 99-channel GPS receiver & External GPS antenna (Included)

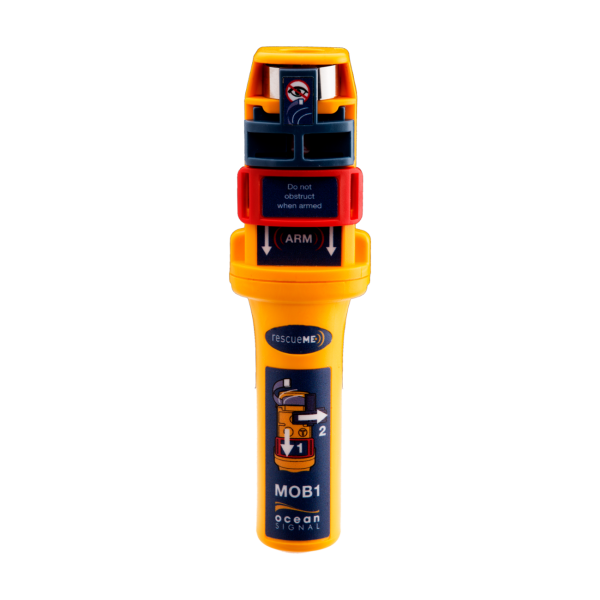

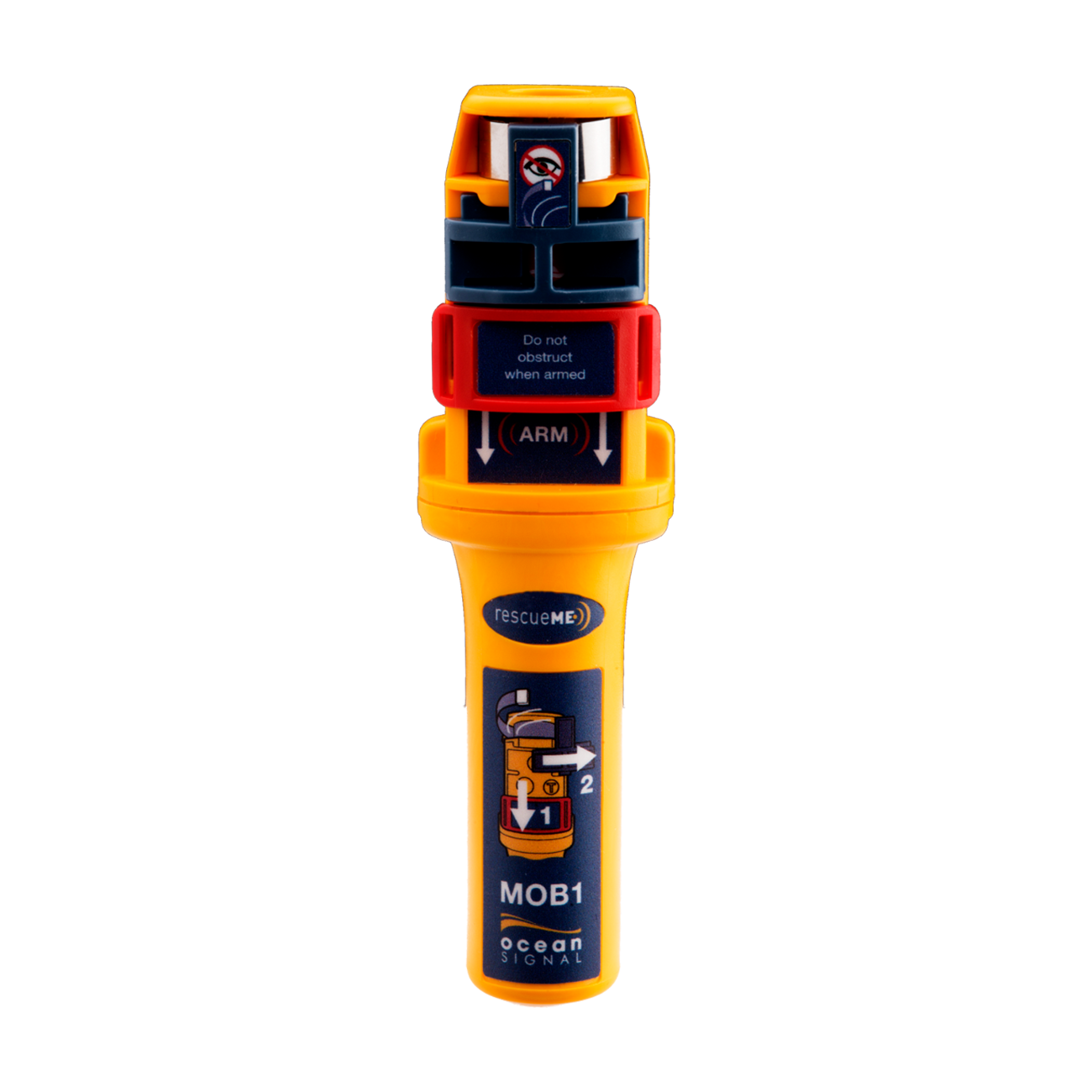

  • Ocean Signal rescueMe MOB1 (2 Included)
    • Integrated DSC transmitter (digital selective calling)
    • 30% (Typ) smaller than competitors

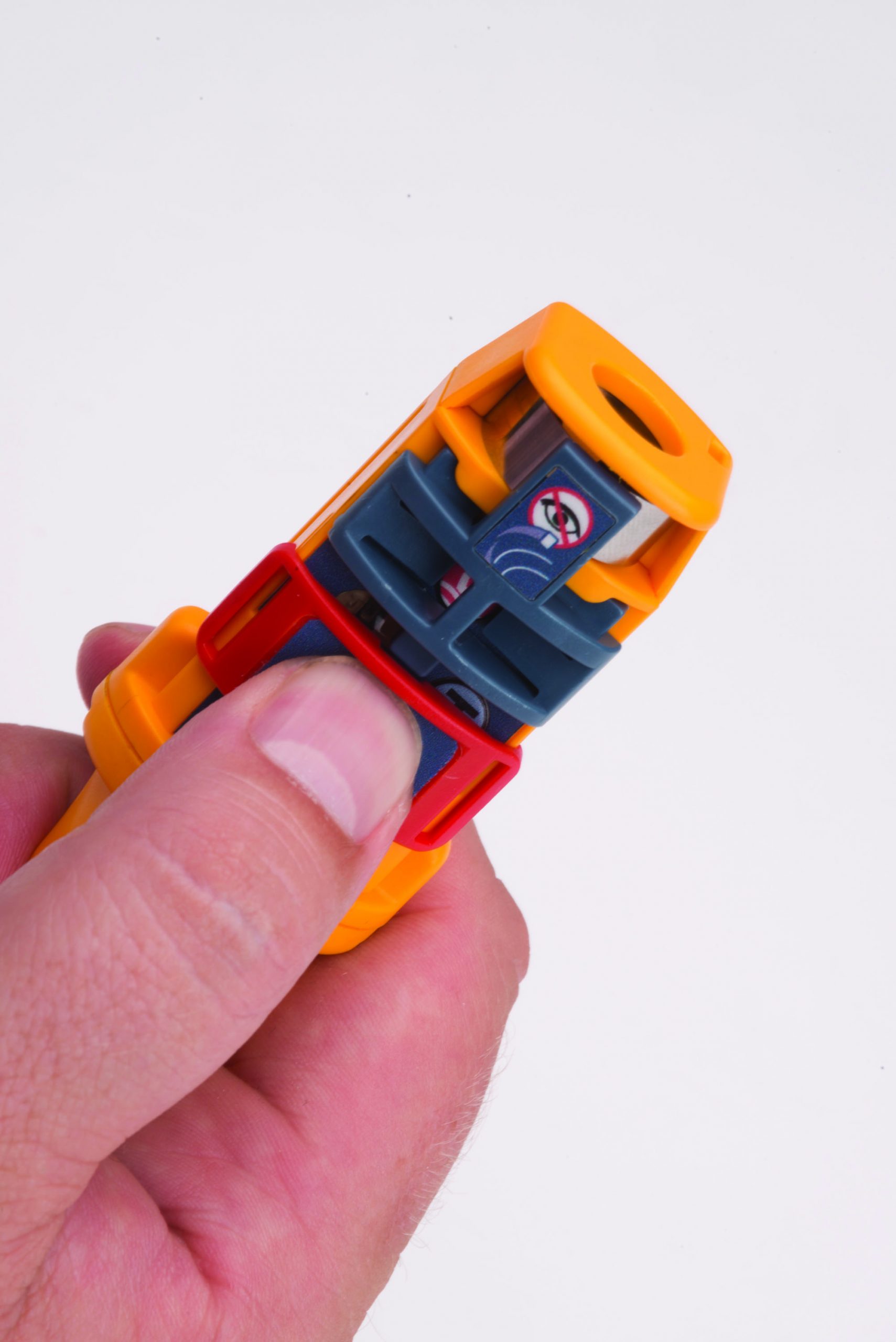

    • Automatic activation

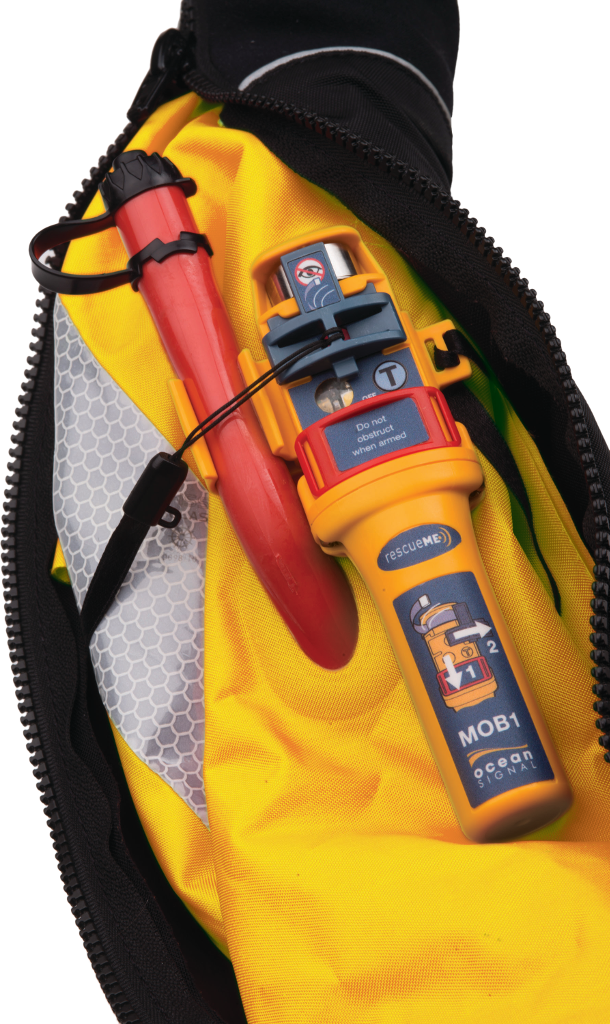

    • Simple lifejacket integration
    • 7-year battery life
    • 24+ hours operational life
    • 5-year warranty
    • Fast accurate positioning



Additional information

Weight 3.8 lbs
Dimensions 13.25 × 8.5 × 3.75 in
Boat Size

, ,

Boat Type

, , , ,

Product

Name

AISLink CB2 Class B AIS Bundle Kit

Product Description

Class B AIS Transceiver and MOBs

Application

Coastal Cruising, Sailing, Offshore Recreational, Charters,

Waterproof

IPx7 (1 meter for 30 minutes)

Weight

0.36kg / 0.8lbs

Warranty

2 Years (plus 1 on registration)

Dimensions

101 x 162 x 58mm

Temperature Range

Operational: -5°F to +131°F (-15°C to +55°C

AIS Transmitter Frequency range

156.025 – 162.025 MHz

Receiver Sensitivity

-107dBm for 20% packet error rate

AIS Receiver Frequency range

156.025 – 162.025MHz

Transmit Power (EIRP)

AIS – 5 Watt

Power Supply

10.8 – 31.2 Vdc

GPS receiver

High Sensitivity, 99 acquisition/33 tracking

Serial Ports

NMEA 0183 [2 Rx, 2 Tx]

NMEA2000® [DeviceNet]

1 x USB

1 x WiFi IEC802.11 bgn

Man Overboard

Includes 2 Ocean Signal rescueMe MOB1 AIS Man Overboard Beacons

  • Integrated DSC transmitter (digital selective calling)
  • 30% (Typ) smaller than competitors
  • Automatic activation
  • Simple lifejacket integration
  • 7-year battery life
  • 24+ hours operational life
  • 5-year warranty
  • Fast accurate positioning



WARRANTY LENGTH:  2 YEARS + Extend your warranty 1 Year creating an account during set-up allowing ACR to send you information and updates regarding this product.

Limited Warranty

ACR Electronics will at its discretion, repair or replace the faulty products free of charge excluding the cost of shipping. Proof of purchase shall be required for a warranty claim to be valid from the original purchaser. All claims shall be made in writing to ACR Electronics or an approved service dealer or distributor. ACR Electronics shall not be liable to the buyer under the above warranty:

  • for any repairs or modifications carried out using parts not supplied or approved by ACR Electronics and for work carried out other than by ACR Electronics or approved service dealers,
  • for any part, material, or accessory that is not manufactured by ACR Electronics the consumer will be covered by the warranty offered to ACR Electronics by the manufacturer or supplier of such a component,
  • for a product which has not been fully paid for,
  • for any product supplied by ACR Electronics to a customer under an alternative warranty or commercial agreement, for the cost of shipping product to and from the customer.

This warranty does not affect your statutory rights. This warranty is to be interpreted under United States law.



For further assistance please contact our Technical Service Department.



ACR Electronics, Inc.

5757 Ravenswood Road, Fort Lauderdale, FL 33312

Email: service@acrartex.com

Telephone: +1 (954) 981-3333

Fax: +1 (954) 983-5087
